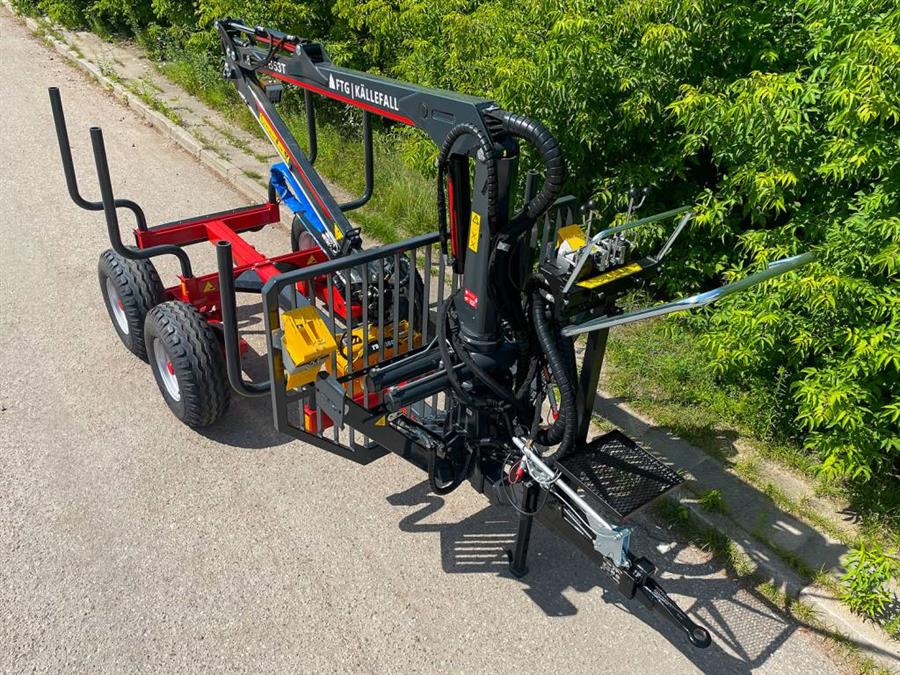

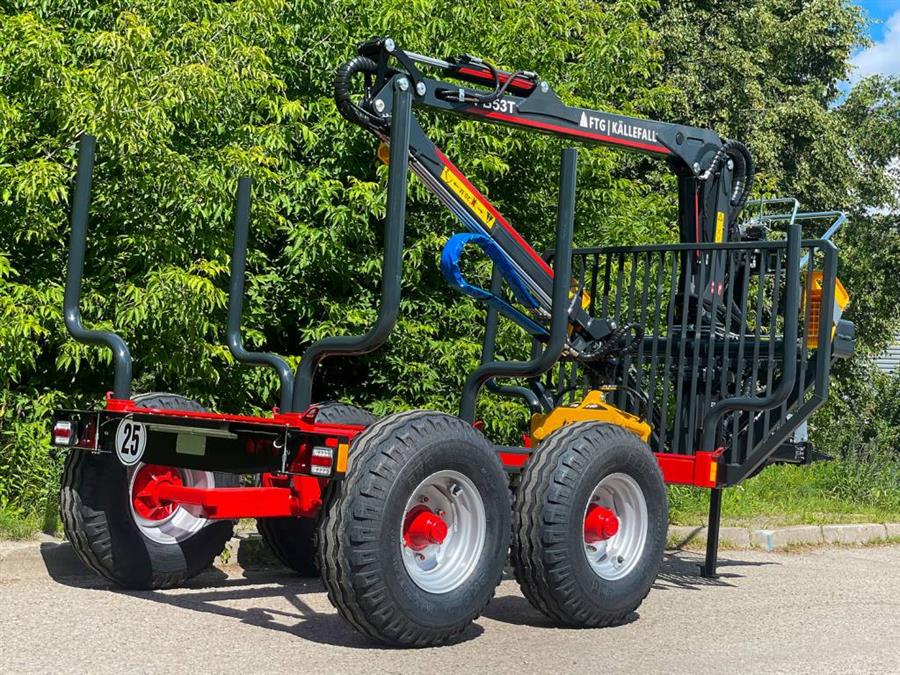

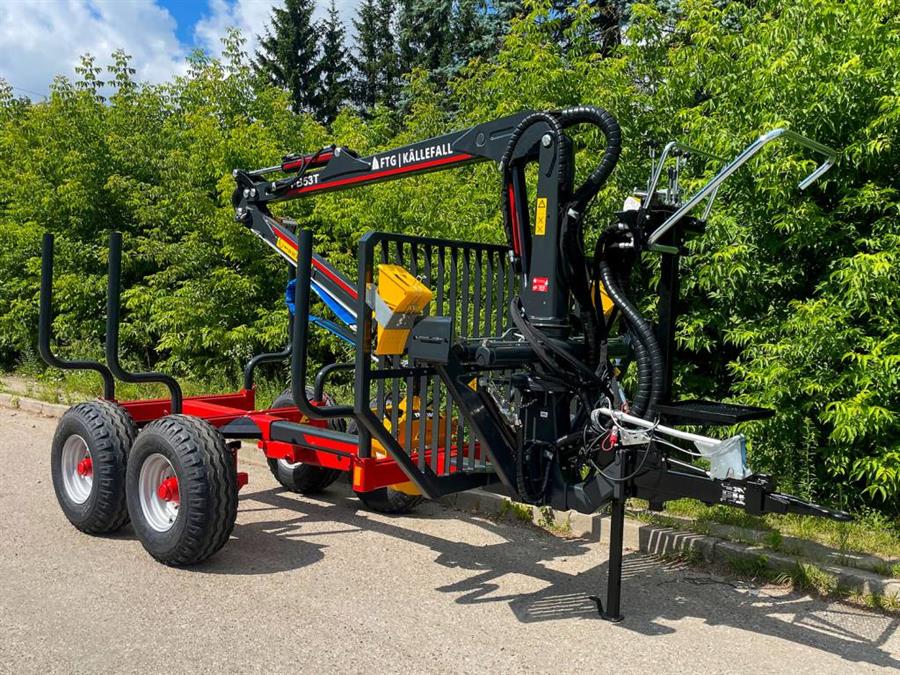

Standard loading crane FB53T is equipped with slew motor with 4 slewing cylinders, linkage system, telescopic boom, and comes together with 3 tons rotator, connection of hydraulic hoses to rotator, rotator link with pending brake and grapple FB160.
-Strengthened frame for increased durability
-Wide range of accessories offered
-Trailer combination with cranes of a reach up to 5.3 m
Trailer FB60 has similar dimensions to our trailer FB50 however comparingly it has strengthened frame and upgraded gates where the loading area has increased from 1,4m2 to 1,75m2.
It is suitable for the transportation of firewood, pulpwood, and other timber logs. Material as brushwood, branches, and any other similar lightweight material can be transported with the help of optional insert plates ordered along with the trailer or supplied later when needed.
The size of the trailer is fairly compact and remains very popular among the farmers and smaller tractor with lower oil flows owners.
Loading length of the trailer is 2,9m however it can be extended to 3,4m while mounting a frame extension on to the center beam. Frame extension is secured to the beam with bolts. To secure a load on the trailer the frame has welded on sling loops/anchor points for the tensioning belt.
Standard trailer delivered with 2 movable bunks and 4 stakes in total. Bunks with stakes are used to stack in and hold logs on the trailer. Depending on the log lengths bunks can be moved along the central beam to suit the necessary length. Additional bunks with stakes can be installed if needed for shorter timber logs.

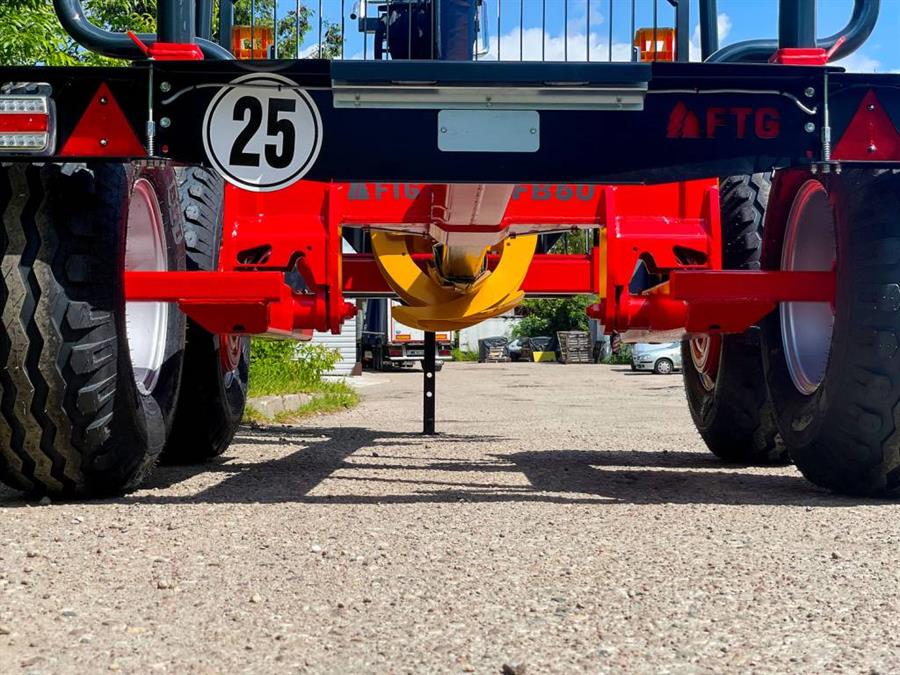

The trailer features original crane base & gate design as well as “easy-climbing” bogie construction with the ability to adjust the longitudinal position for optimal balance. Bogie swing axle’s construction ensures high durability & long service-free operation, while flap-down supports ensure reliable stability during operation.
Cranes for trailer FB60:
Crane FB47L | Crane FB51 | Crane FB53T
