AMR- Horizontal Log Splitter

AMR - Horizontal Log Splitter
Click images to view larger
Current Promotion:
Special Offer
Ref/S/No: 176 Year: 2015
Was Price: £1,995 Now Price: £1,750
Type: New HHY 09 Tractor Hydraulic Horizontal Log Splitter
Description:

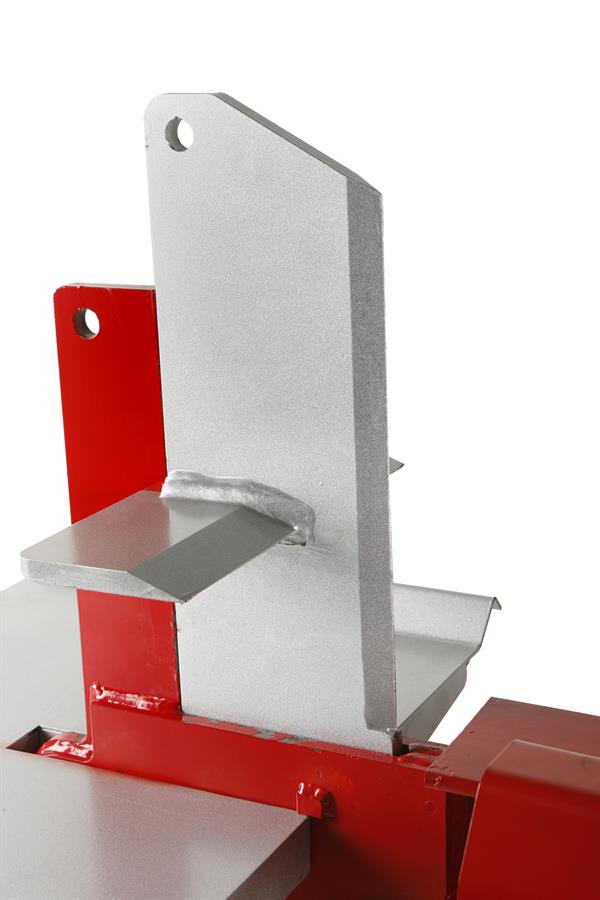

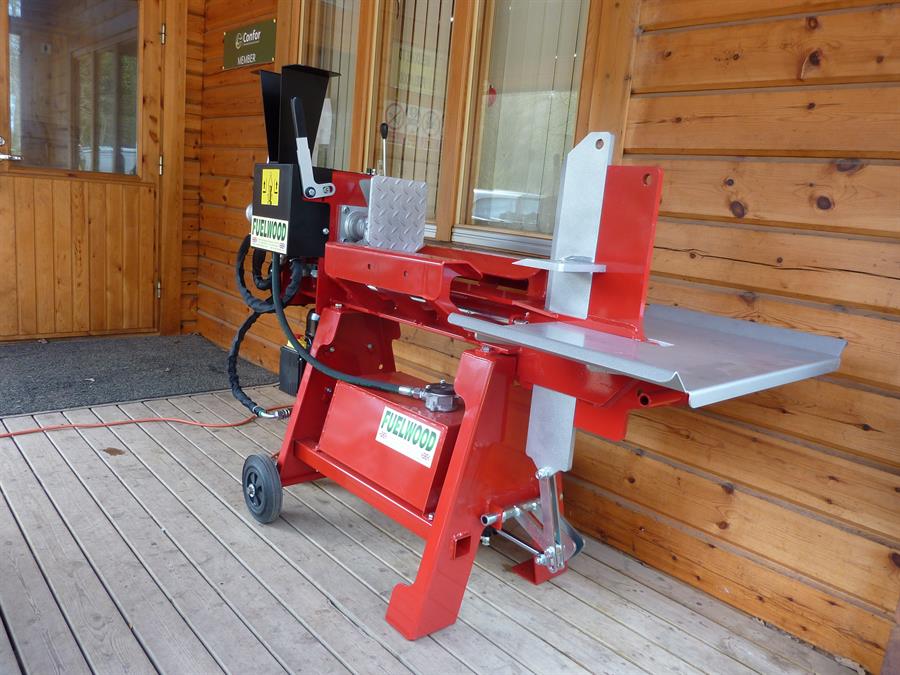

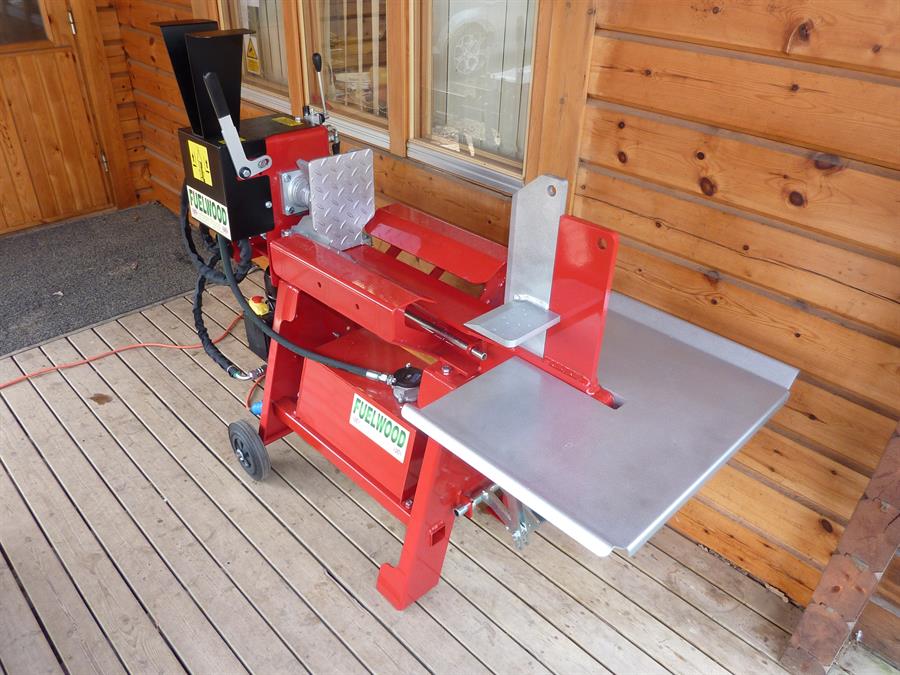

The AMR-H Series of Log Splitters are a Horizontal type. The logs are split at a comfortable working height. The log support is ideal for large knotty logs and keeps them centred on the splitting knife.  The hydraulically adjustable 4-way splitting knife ensures the size of split logs is consistent. The knife is quickly adjusted up and down and can split logs into 2 or 4 pieces. The split logs are pushed onto a large support table so larger ones can be easily retrieved to be split again. The splitting action has 2 speeds to ensure fast splitting speed and power when needed.
Mounted on solid rubber wheels the machine can be easily moved around. Yet is a robust design allows it to be used by professionals.
Technical Specifications:




HEL09MDP HEL09T HHY09 HPF09
Splitting Force (tons) 9 9 9 9
Splitting Length (cm) 55 55 55 55
Weight (kg) 235 235 200 235
Electric 240V single phase X


Electric 415V 3 phase
X

Tractor PTO


X
Tractor Hydraulic

X
Single or Double Pump Double Single - Single
Splitting Speed(cm/sec) 14.8/6.6  13/5.6 - 18.9/9.1
Return Speed (cm/sec) 11.2 9.8 - 13.5

Rights for techincal modifications reserved. Warranty 1 year.
Key Features:

Comfortable working height

Hydraulically adjustable splitting knife

Large support table for split logs

Fast - Powerful 2 speed hydraulics

Robust design
