Japa- Skidding Grapple

The JAPA skidding grapple is gentle on the forest yet robust for skidding, transport and stacking of logs.
Click images to view larger
Current Promotion:
Ex-Demo
Ref/S/No: 148 Year: 2017
Was Price: £2,125 Now Price: £1,895
Description:

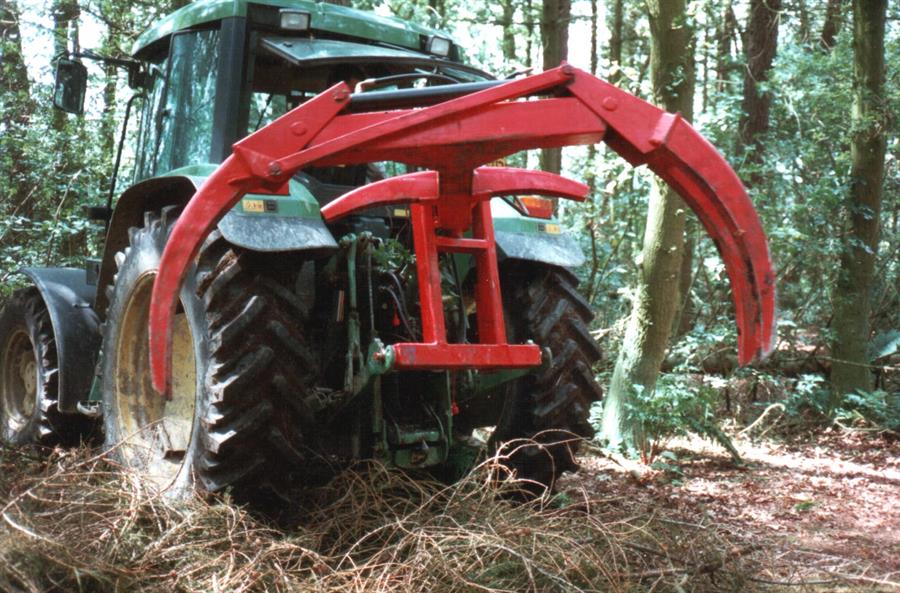

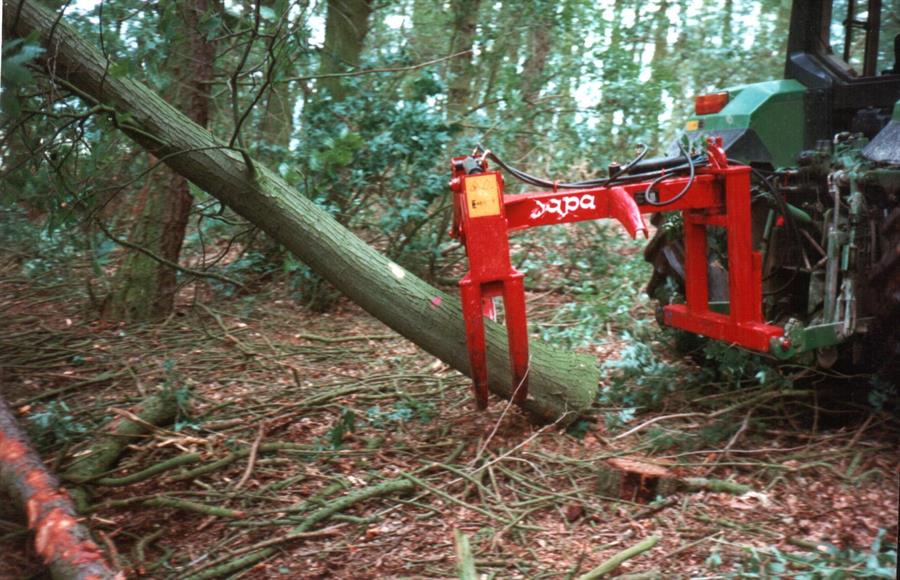

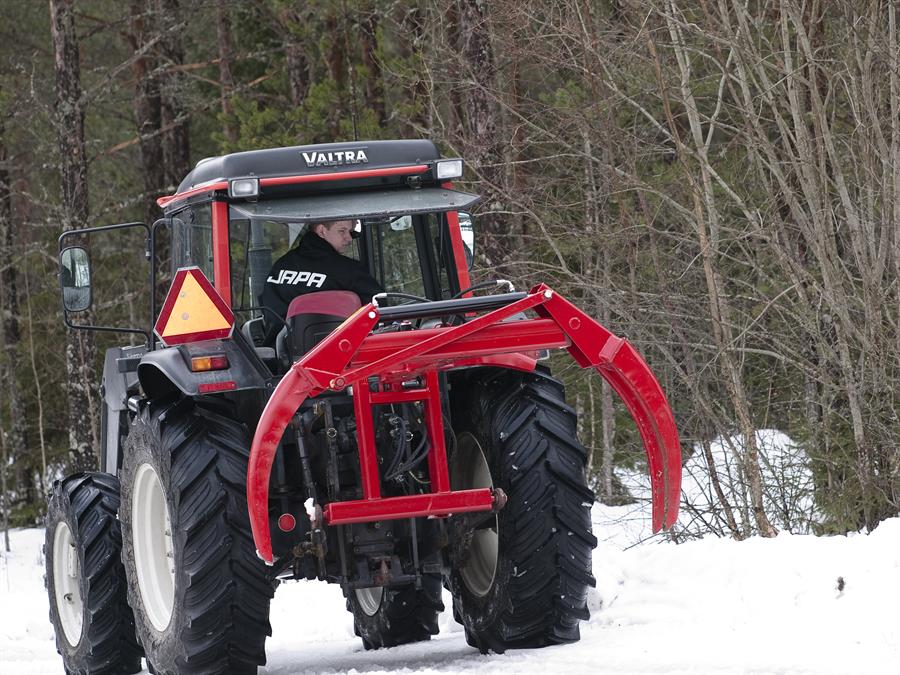

The JAPA skidding grapple is gentle on the forest yet robust for skidding, transport and stacking of logs.

The JAPA skidding grapple is the right tool for efficient skidding and the close-range
transportation of logs. Together with the counter bolster, the three claws straighten the logs, which speeds up the transport and stacking operations. Owing to the articulated frame of the skidding grapple, the load follows the tractor’s movements, causing no damage to the growing tree stand. The articulated joint can be locked from the cabin.

The hydraulic swing to the side, which is available as an option, makes picking up of bunches from the drive track easier. The wide spread of the claws and the strong cylinder ensure good penetration of the claws into the woodpile.

Technical Specifications:
Technical Data:
Number of claws: 3 pcs.
Cylinder diameter (double acting): 60mm
Pinching force at claw tip: 100kg
Max. gap between claws: 2000mm
Length of the boom - from the middle of the claw to the joint pin: 1100mm
Weight 235kg
Options: slew cylinder Double acting

Angle of rotation - 45°

weight 15kg
Key Features:
