Professional Saw - Circular Saw with Conveyor

Current Promotion:

Description:

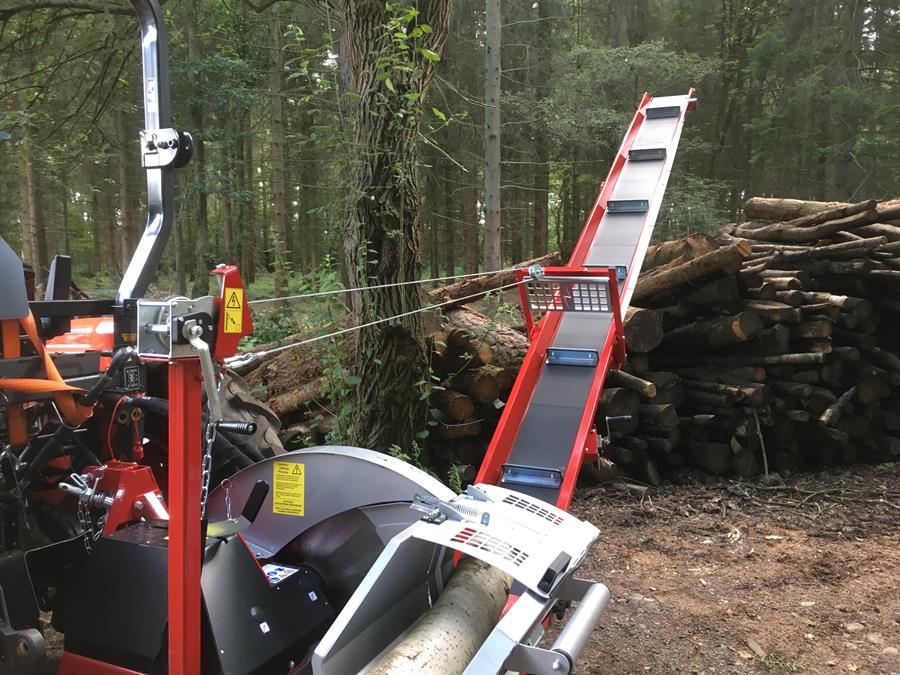

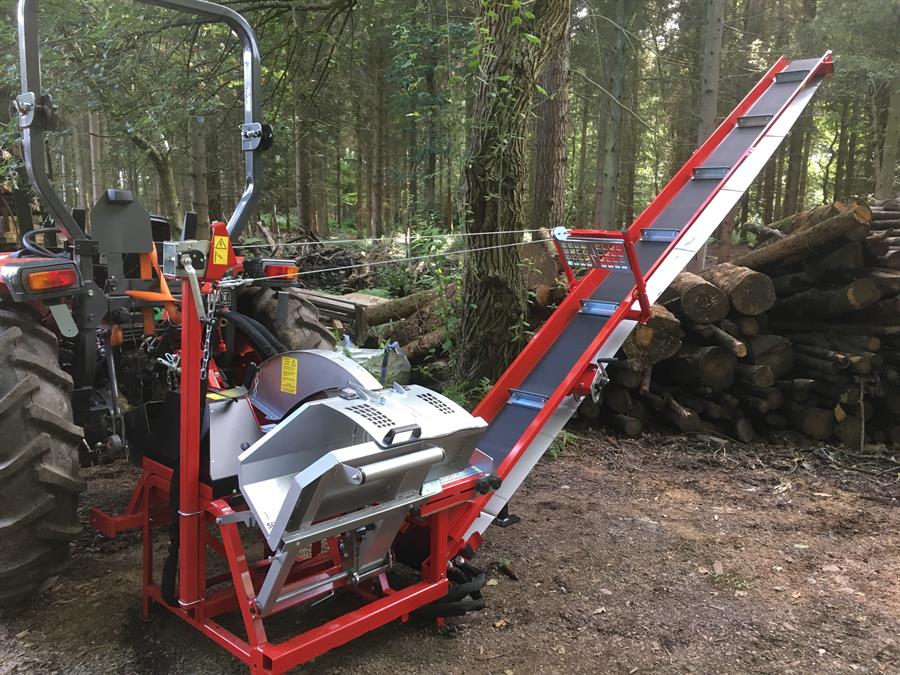

Stand mounted circular saw with conveyor belt, PTO drive, folding, raising and belt operation all hydraulically driven from tractor.

Technical Specifications:

• PTO drive for saw blade

• HM saw blade s700/30 x 4.2/3.2 mm, 42 teeth

• Smallest wood diameter 50 mm, cutting depth approx. 240 mm

• Tconveyor drive by tractor hydraulics, push-pull connections

• Seesaw with protective cover

• Emergency stop lever for PTO drive

• Robust and durable

• Wood holder

• Rolling handle for easier operation

• Cutting length adjustment from 20 to 50 cm, each cm

• Guided ejection of the cut wood.

• Conveyor belt 5 m with 850 mm long split segments, width approx. 250 mm

• Conveyor belt speed infinitely adjustable • Safety flap on conveyor belt • Entry/exit of the conveyor belt and inclination adjustment due to manual winches

• Dimensions transport position (L x W x H) 1,200 x 1,400 x 2,400 mm

• Conveyor belt length 5100 mm, ejection height 3200 mm

• Weight: 365 kg
