Japa- 355 - Firewood Processor

Japa 355 - The compact Japa 355 is a machine for every need.
Click images to view larger
Current Promotion:
Special Offer
Ref/S/No: 110 Year: 2018
Was Price: £9,230 Now Price: £8,695
Description:

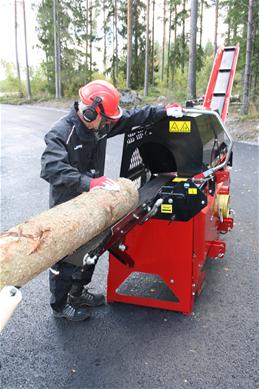

The in-feeding and cutting of the logs is easy to operate by on simple saw handle.

The cutting of the wood is taking care of hydraulic chainsaw. Using 15” bar Japa 355 enables the cutting of logs diameter up to 35 cm. The length of the cut can be adjusted up to 60 cm and the 2/4-way or optional 6-way knife ensures also the wood production from bigger logs.
The Hydraulic driven 3.8 m conveyor loads the logs straight to the trailer or sack.

Japa 355 has the large cutting area
completely covered to ensure optimum safety.

Easy access to timber from one piece guard which opens fully.





Simple Log lifter is also available

Technical Specifications:




355 TR 355 E 355 TRE
Hydraulics


Volume of hydraulic oil (l) 33 33 33
Flow of hydraulic pump (bar.) 220 220 220
Saw Cutting


Hydraulic Chainsaw Standard Standard Standard
15" bar Standard Standard Standard
Chain 0.375" or 0.325" Standard Standard Standard
Max diameter of log (cm) 35 35 35
Max length of log (cm) 60 60 60
Sawchain Lubrication Capacity (l) 3 3 3
Log Splitting


Splitting force 7 ton 7 ton 7 ton
Automatic High-speed valve Standard Standard Standard
Splitting knife, 2/4 Standard Standard Standard
Splitting knife, 6 ways Option Option Option
Adjustment of the splitting knife Standard Standard Standard
Output Conveyor


Length 3.8 m 3.8 m 3.8 m 3.8 m
Width of the conveyor belt (mm) 200 200 200
Dimensions


Height in transport position (mm) 2470 2470 2470
Width in transport position (mm) 2380 2380 2380
Depth (mm) 935 935 935
Weight (kg) 630 685 565 595 630
Power source


Tractor PTO 400 r/min n.a. 400 r/min
Electric motor, 7.5 kW 415V n.a. Standard Standard

Rights for technical modifications reserved. Warranty 1 year.
Key Features:

Fast Efficient Hydraulics

Easy to maintain Chainsaw cutting

Excellent access due to one piece guard

Ideal for awkward timber shapes and sizes

Very Safe - interlocking guard / safety system
