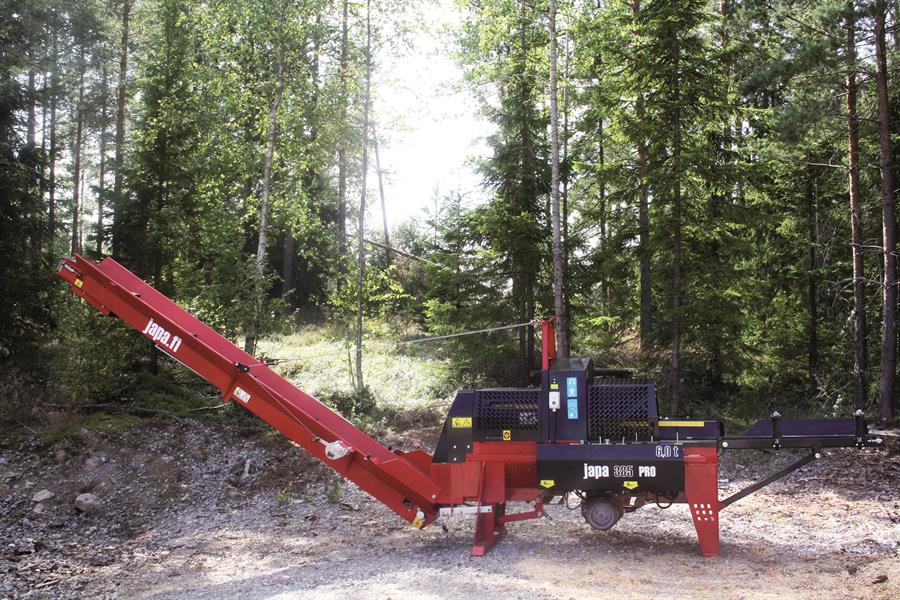

The JAPA 385 firewood machine model range consists of three different equipment levels. BASIC, EXPERT and PRO models are all available with 6t or 8t splitting power. JAPA 385 firewood machine can be equipped for tractor operation, electrical operation or a combination of these. The equipment level should be selected on the basis of e.g. firewood production volumes, available drive power and operating location. All models still include the properties that are known to be highly valued by users, since after-sale modifications are often expensive and complicated to execute.
All models of JAPA 385 firewood machine include the following standard properties and equipment:
• Mechanical turning/slew of unloading conveyor
• Hydraulic 4.2 m unloading conveyor
• Separate lubrication for saw chain
• Extended feeding conveyor (2.3 m)
• Separate splitting for final log
• 2/4-way splitting knife
• Quick release connections for the hydraulics of log frame feeding roller
• Hydraulic control for control of cross chains on timber deck
|
BASIC
|
EXPERT
|
PRO
|
|
Mechanical lifting of splitting knife
Sawhandle operated sawing and log feeding
Mechanical Log stop
Splitting started with sawhandle
|
Mechanical lifting of splitting knife
Hydraulic sawbar control
Sawbar with adjustable cutting speed
Reversable in-feed belt
Hydraulic log stop
Splitting started automatically
Speed control of out-feed conveyor
|
Hydraulic height adjustment for spitting knife
Hydraulic sawbar control
Sawbar with adjustable cutting speed
Reversable in-feed belt
Hydraulic log stop
Splitting started automatically
speed control of out-feed conveyor
6-way splitting knife included
|
Fast Chainsaw cutting
Option of effortless hydraulic controls
Fast splitting cycle
Safe - all hydraulics isolated when safety guards are opened
Fast access to splitting area
Large opening on in-feed
