Uniforest- Titan 40/20 Gen2 Premium

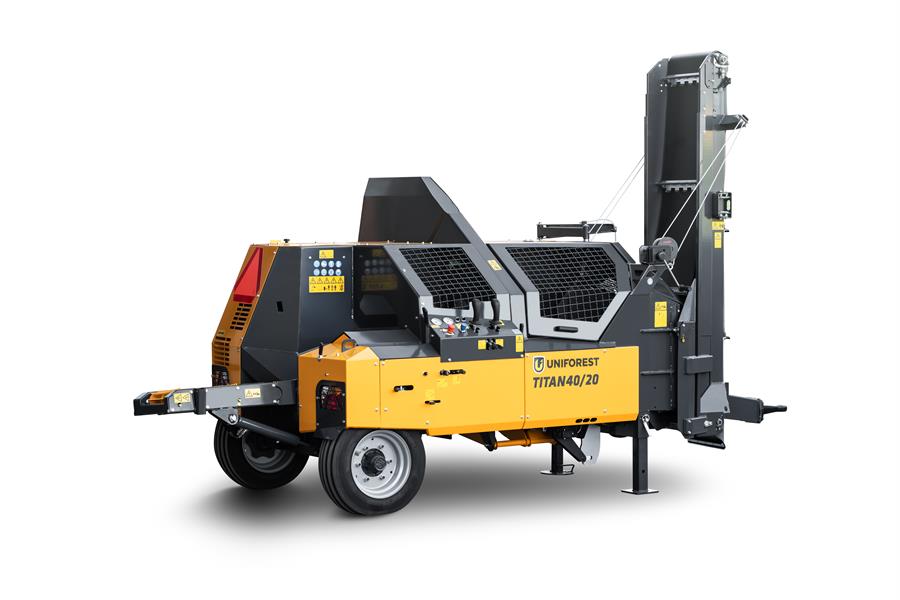

The firewood processor TITAN 40/20 Gen2 premium Circular Saw blade with 40cm (16") cut and 20 ton hydraulic splitting

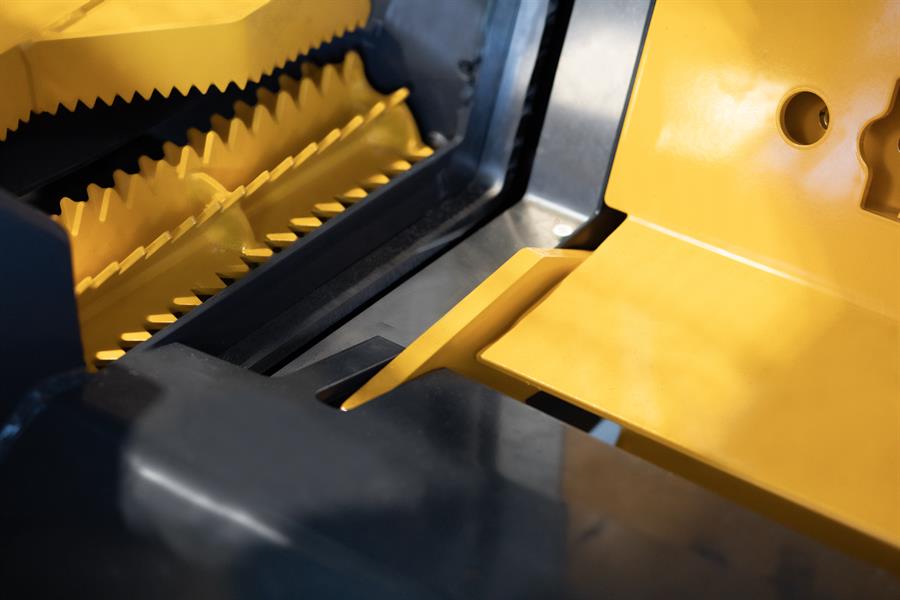

Cut log support for last piece, ensures log is gripped and cut square

Current Promotion:

Description:

The firewood processor TITAN 40/20 Gen2 premium for larger quantities of firewood is a compact, reliable and mobile solution. It is also environmentally friendly because it requires no lubrication and the leftover wood after cutting and splitting can be recovered for further processing. Logs with a diameter of ø 40 cm are cut with WIDIA saw blade and split into 4, 6, 8 or 12 parts at the same time. Splitting force is 20 t.

Environmentally friendly firewood processor TITAN 40/20 premium is cutting logs with Tungsten tipped circular saw from cemented carbide resilient to foreign materials that cuts logs in the shortest time possible. Furthermore, it requires no lubrication with oil that could be dispersed in the environment. Because of completely mechanical operations, the firewood processor can also be used in more demanding conditions. Telescopic hydraulic lifting table for logs up to 4 m is available for easier work. The drive is possible via PTO, electric motor or a combination of both.

Cuts with a Tungsten tipped circular saw
40cm(16") Cutting capacity
20 ton splitting forces
Available with auto positioning of splitting knife
Boom-Speed shortens the splitting cycle
Half stroke splitting cycle for x2 performance
ECO FRIENDLY
Mechanical-hydraulic control

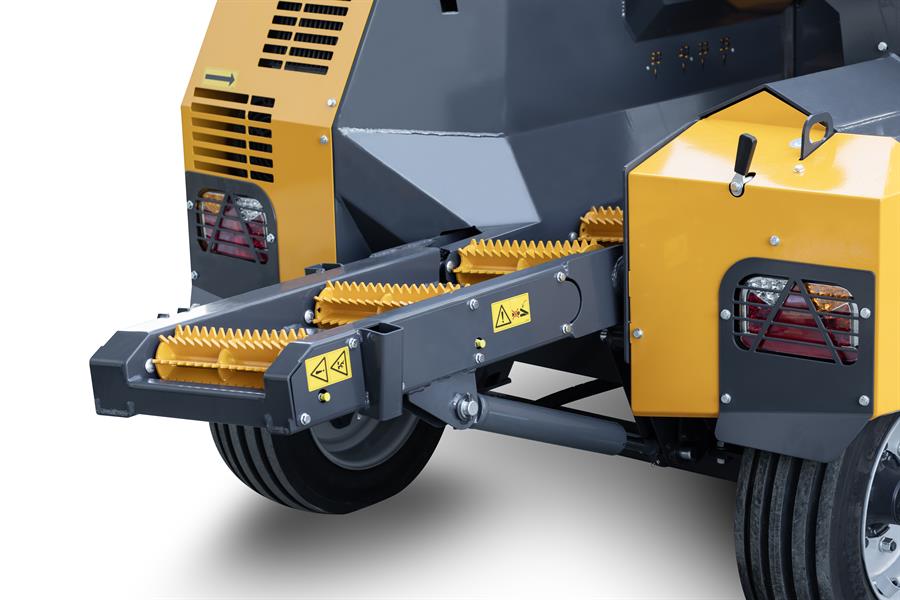

Hydraulic raising/lowering of infeed for twisty material
Telescopic hydraulic lifting table possible
Easy maintenance with low costs

Technical Specifications:

	CD	CD UNIFORCE	CD TR UNIFORCE	CD+E UNIFORCE	CD+E TR UNIFORCE	CD TR	CD E	CD E TR
Engine Power (kW)	-	-	-	15	15	-	15	15
Recommended Tractor Power (kW/HP)	35/45	35/45	35/45	35/45	35/45	35/45	35/45	35/45
Max. Cutting Diameter(mm)	400	400	400	400	400	400	400	400
Splitting Force (kN/t)	200/20	200/20	200/20	200/20	200/20	200/20	200/20	200/20
Circular Saw Diameter(mm)	1000	1000	1000	1000	1000	1000	1000	1000
Weight (kg)	2050	2100	2150	2250	2300	2100	2200	2250
Dimension A(mm)	2950	2950	4230	2950	4230	4230	2950	4230
Dimension B(mm)	2050	2050	2050	2050	2050	2050	2050	2050
Dimension C (mm)	2700	2700	2700	2700	2700	2700	2700	2700
Oil Quantity (l)	105	105	105	105	105	105	105	105

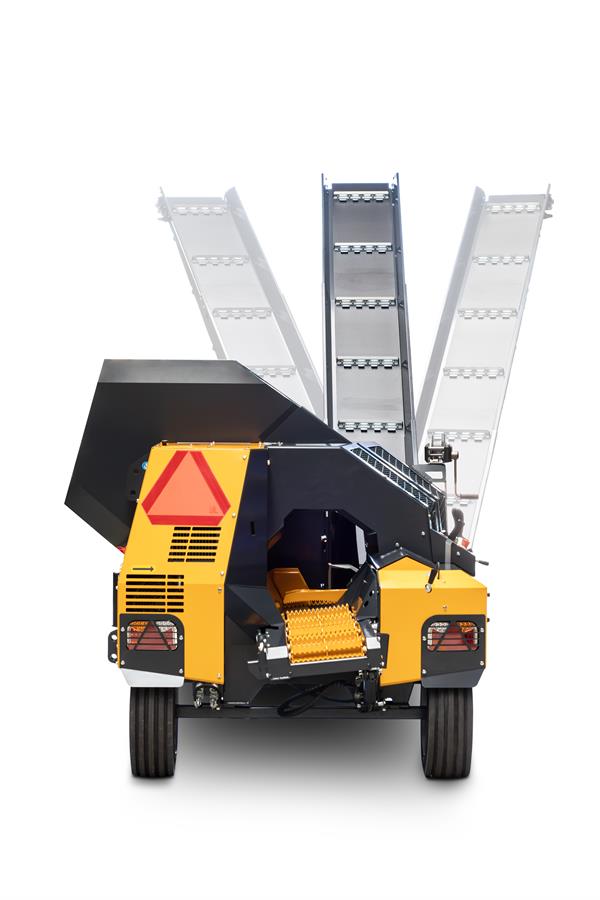

Conveyer belt slew (hydraulic)
Hydraulically adjustable feed-in table
Pickaxe holder
Small pickaxe holder
Telescopic conveyor belt
Telescopic hydraulic lifting table
Splitting knife 2-6
Splitting knife 2-4/2-8/2-12
Oil heater	-	-	-			-
Oil cooler
Separator
Uniforest Connect (Base)
Uniforest Connect (Full)	-					-	-	-
Standard, Optional

Key Features:

	CARBIDE TIPPED CIRCULAR SAW A 1000mm diameter and cutting diameter of 40cm and thanks to its resilience to foreign materials in the wood and the shape of its teeth, the tungsten carbide circular saw will cut through the log with an incredible speed. The movement of the circular saw, including the adjustment of the cutting speed, is hydraulically controlled.

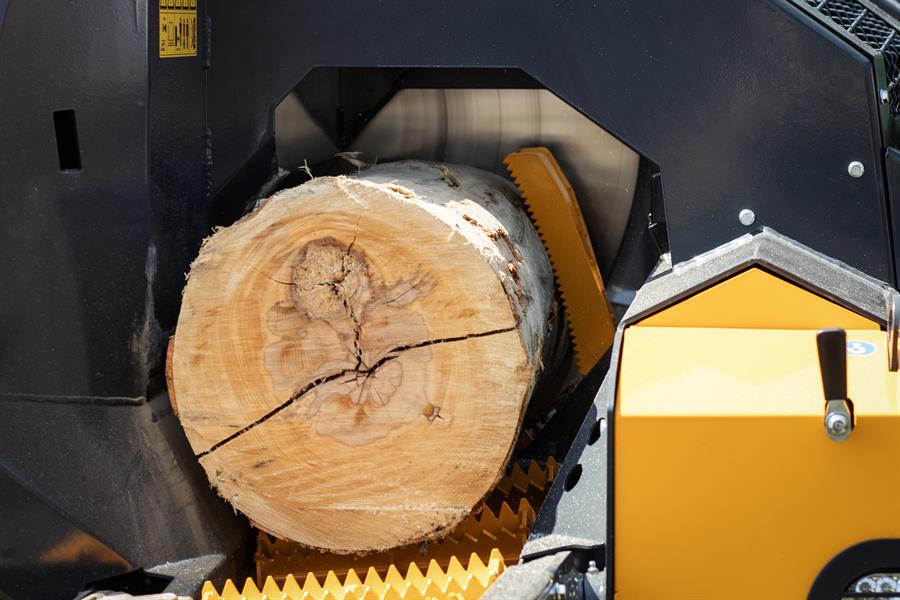

	POWERFUL LOG GRIPPER Firmly holds timber whilst cutting, positioned near the sawblade to allow a short last log to be cut
	LARGE 20 TON SPLITTING A powerful 20ton splitting force ensures the hardest of timber are split, the pusher also has a large area to minimise twisting as logs are being split

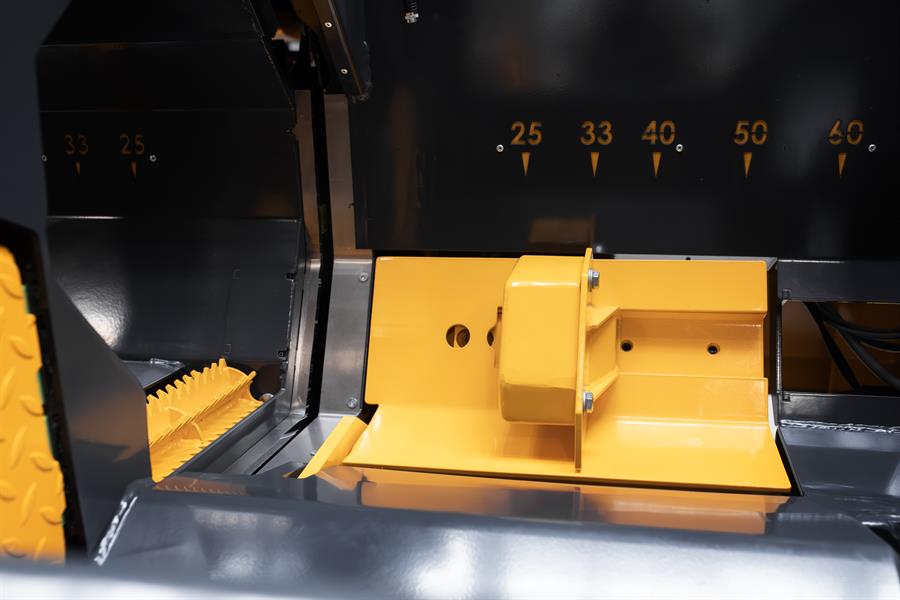

	ADJUSTABLE LENGTH STOP & TRANSFER The log length stop is adjustable and automatically retracts when the saw blade is cutting. After cutting the sawn log is moved across to the splitting area. greatly reducing the twisting of short length logs.

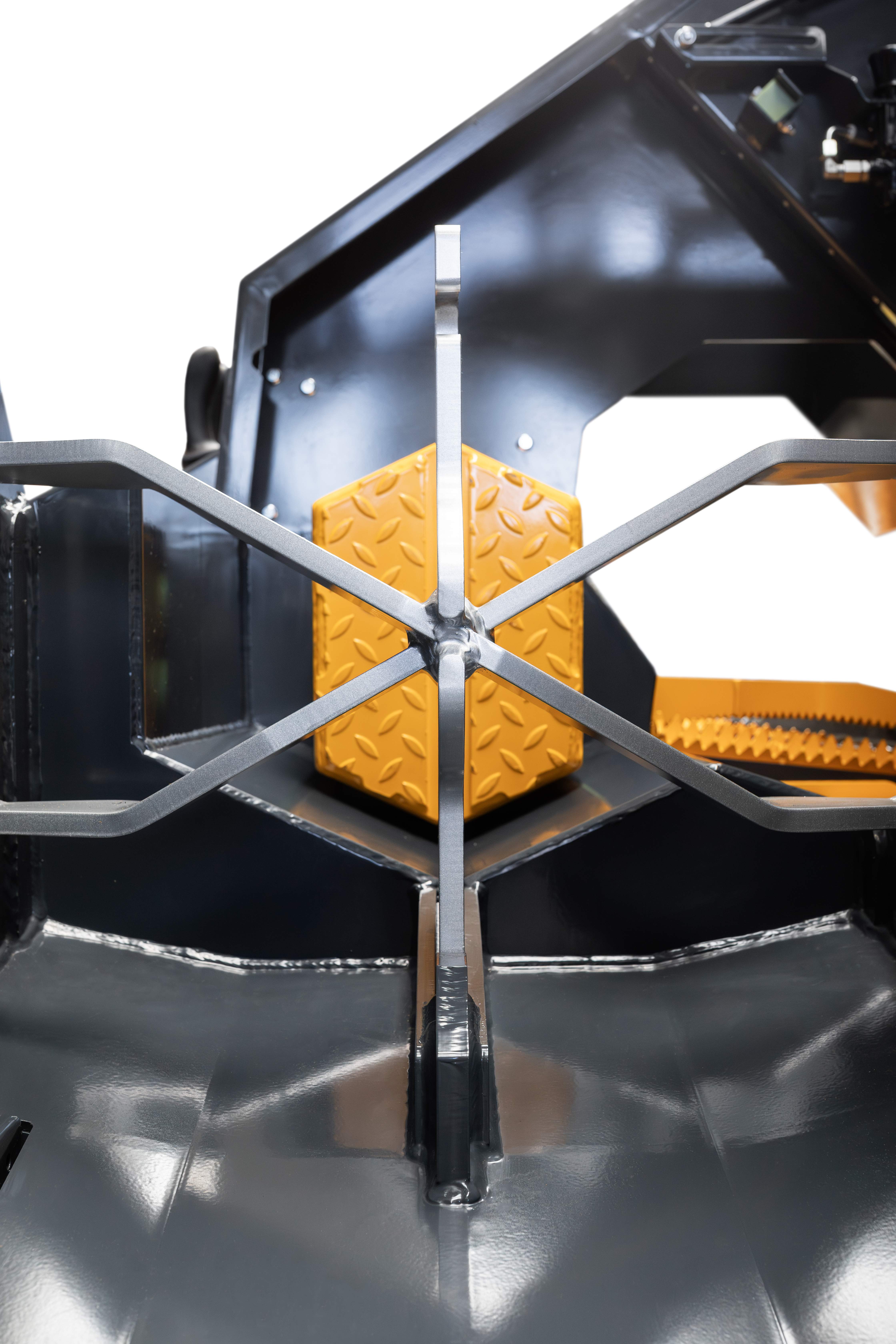

	ADJUSTABLE EASY CHANGE SPLITTING KNIVES The splitting knife is adjustable to cater for different diameter of logs splitting combinations available :- 2-4, 2-6, 2-8, 2-12

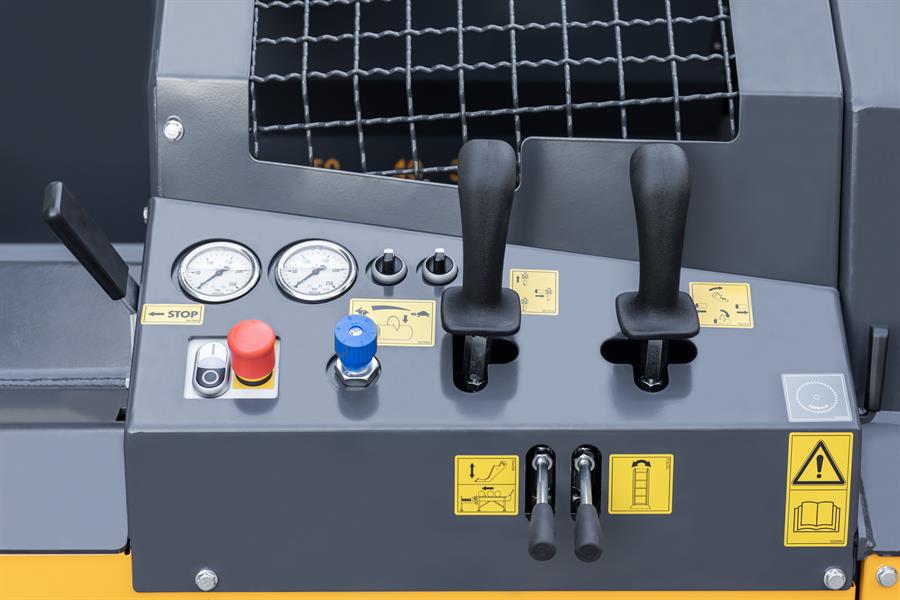

	HYDRAULIC CONTROL The gauges show the system pressure of the auxiliary functions and the splitting pressure. Controls include: on/off switch and emergency stop switch: conveyor belt speed control: operation of hydraulic control levers and splitting speed setting. Due to these properties, the processor can be used even in more demanding conditions, and its maintenance is easy.
	TELESCOPIC HYDRAULIC LIFTING TABLE An option to be able to lift logs up to 4000 mm (option).
	PRESSURE FILTER A pressure filter with a clogging indicator prevents dirt from entering the control valve. The clogging indicator on the filter indicates whether it has a proper flow (coloured green) or is clogged (coloured red) and needs to be replaced.
