Uniforest- Titan 40/20 Premium

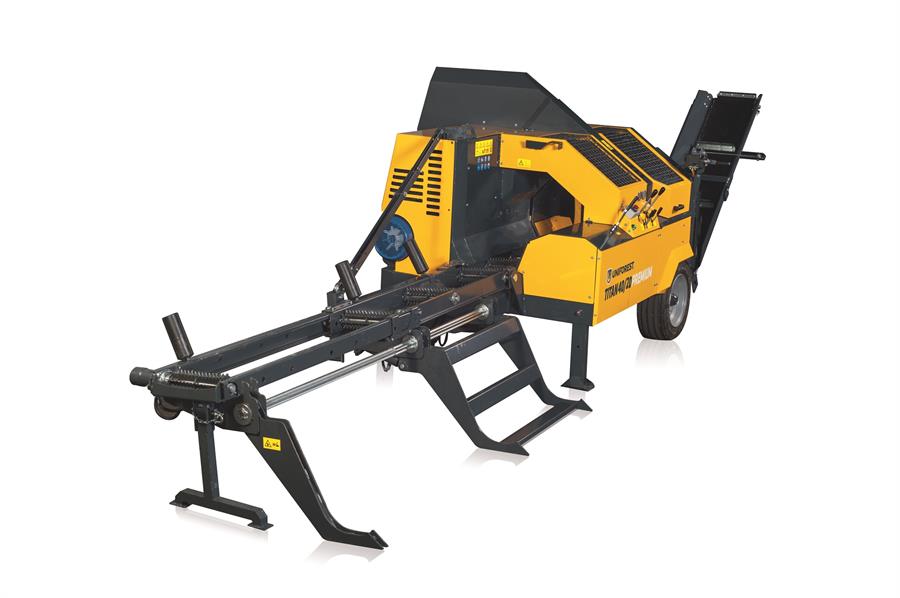

The firewood processor TITAN 40/20 premium Circular Saw blade with 40cm (16") cut and 20 ton hydraulic splitting
Click images to view larger
Description:

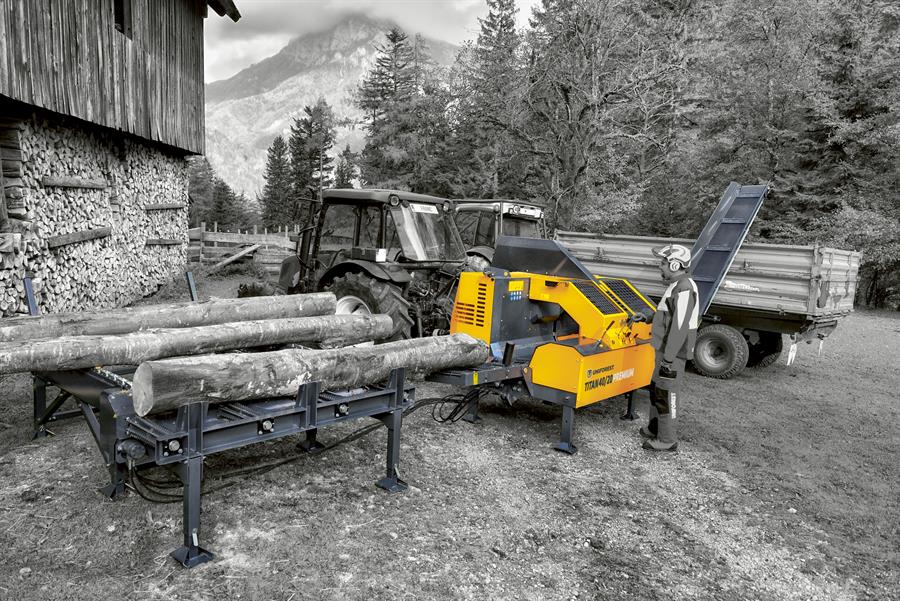

The firewood processor TITAN 40/20 premium for larger quantities of firewood is a compact, reliable and mobile solution. It is also environmentally friendly because it requires no lubrication and the leftover wood after cutting and splitting can be recovered for further processing. Logs with a diameter of ø 40 cm are cut with WIDIA saw blade and split into 4, 6, 8 or 12 parts at the same time. Splitting force is 20 t.

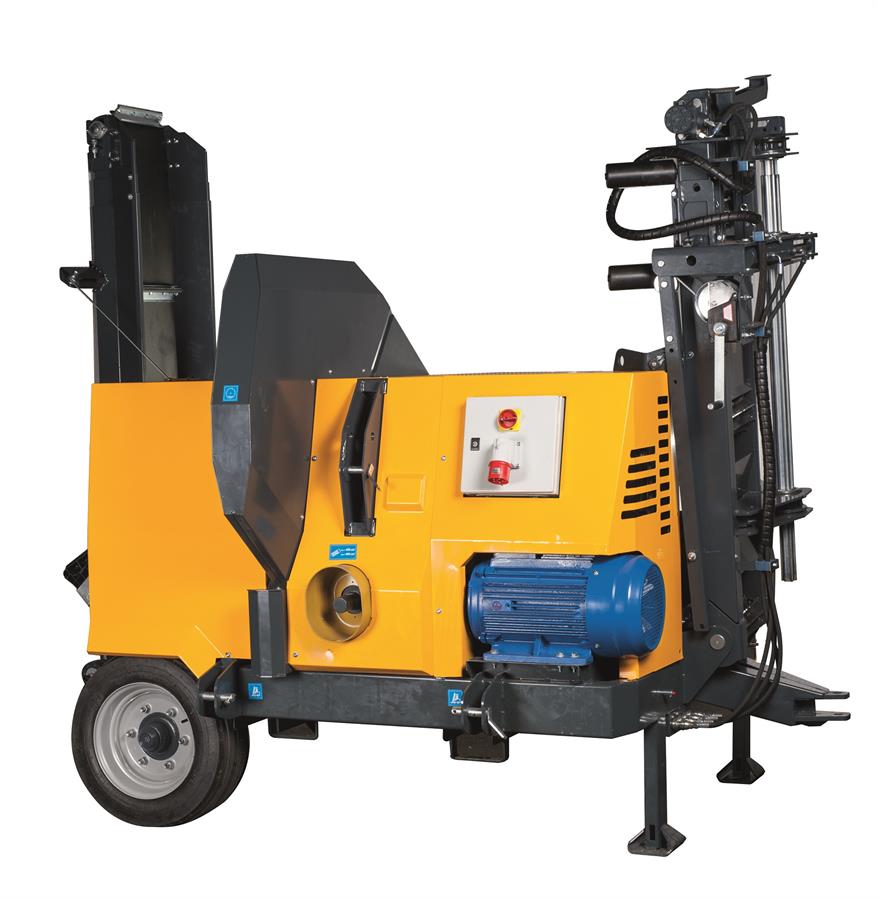

Environmentally friendly firewood processor TITAN 40/20 premium is cutting logs with Tungsten tipped circular saw from cemented carbide resilient to foreign materials that cuts logs in the shortest time possible. Furthermore, it requires no lubrication with oil that could be dispersed in the environment. Because of completely mechanical operations, the firewood processor can also be used in more demanding conditions. Telescopic hydraulic lifting table for logs up to 4 m is available for easier work. The drive is possible via PTO, electric motor or a combination of both.

  • Cuts with a Tungsten tipped circular saw
  • 40cm(16") Cutting capacity
  • 20 ton splitting forces
  • Boom-Speed shortens the splitting cycle
  • ECO FRIENDLY
  • Mechanical-hydraulic control
  • Telescopic hydraulic lifting table possible
  • Easy maintenance with low costs

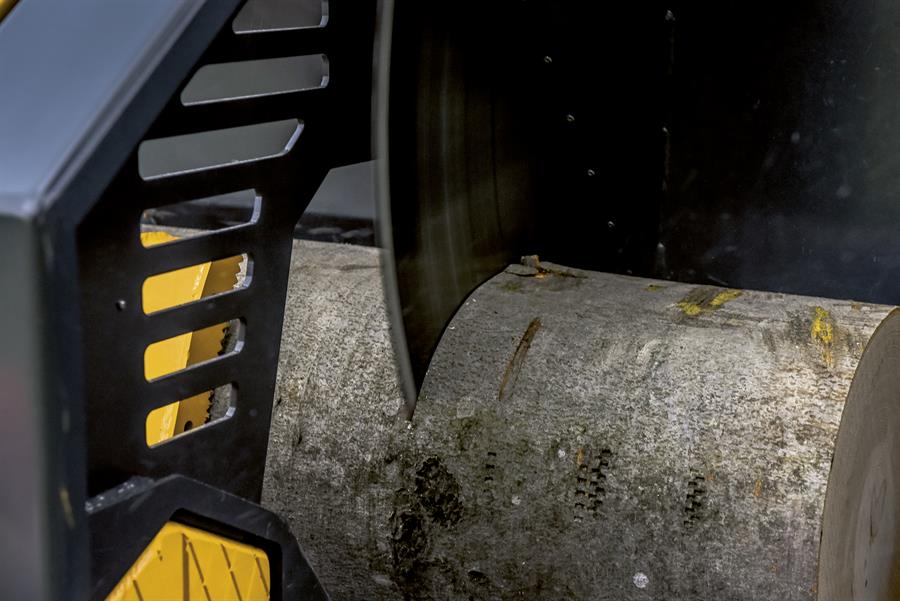

CARBIDE TIPPED CIRCULAR SAW

Thanks to its resilience to foreign materials in the wood and the shape of its teeth, the cemented carbide circular saw will cut through the log with an incredible speed. The movement of the circular saw, including the adjustment of the cutting speed, is hydraulically controlled.



 HYDRAULIC CONTROL

The manometers show the system pressure of the auxiliary functions and the splitting pressure. Controls include: on/off switch and emergency stop switch: conveyor belt speed control: operation of hydraulic control levers and splitting speed setting.

Due to these properties, the processor can be used even in more demanding conditions, and its maintenance is easy.




Powerful Log Gripper

Firmly holds timber whilst cutting, positioned near the sawblade to allow a short last log to be cut



 Large 20 ton splitting pusher

A powerful 20ton splitting force ensures the hardest of timber are split, the pusher also has a large area to minimise twisting as logs are being split




 Adjustable length stop & Transfer

The log length stop is adjustable and automatically retracts when the saw blade is cutting. After cutting the sawn log is moved across to the splitting area. greatly reducing the twisting of short length logs.



 Adjustable easy change Splitting knives

The splitting knife is adjustable to cater for different diameter of logs splitting combinations available :-

2-4, 2-6, 2-8, 2-12


Technical Specifications:


CD CD TR CD E CD E TR
Engine Power (kW) / / 15 15
Recommended Tractor  Power (kW/HP) 35/45  35/45 35/45 35/45
Max. Cutting Diameter (mm)  400 400 400 400
Splitting Force (kN/t)  200/20 200/20 200/20 200/20
Circular Saw Diameter (mm) 1000 1000 1000 1000
Weight (kg) 1650  1850 1800 2000
Dimension A (mm) 3120 3120 3120 3120
Dimension B (mm) 1970 1970 1970 1970
Dimension C (mm) 2700 2700 2700 2700
Oil Quantity (l) 110 110 110 110
Conveyer belt slew (mechanic) Standard Standard Standard Standard
Conveyer belt slew (hydraulic) Option Option   Option Option
In-feed bed with 6 hydraulic rollers Standard  Standard  Standard  Standard
Pickaxe holder  Standard Standard Standard  Standard
Small pickaxe holder  Standard Standard Standard  Standard
Auto-speed valve  Standard Standard Standard  Standard
Telescopic conveyer belt  Standard  Standard  Standard  Standard
Telescopic hydraulic lifting table  Option  Option  Option  Option
Splitting knife 2-4 Standard  Standard  Standard  Standard
Splitting knife 2-6/2-8/2-12  Option  Option  Option  Option
Oil heater Option  Option
Oil cooler Option Option  Option  Option
Separator Option  Option  Option  Option
Key Features:


CARBIDE TIPPED CIRCULAR SAW

A 1000mm diameter and cutting diameter of 40cm and thanks to its resilience to foreign materials in the wood and the shape of its teeth, the tungsten carbide circular saw will cut through the log with an incredible speed. The movement of the circular saw, including the adjustment of the cutting speed, is hydraulically controlled.



 HYDRAULIC CONTROL

The gauges show the system pressure of the auxiliary functions and the splitting pressure. Controls include: on/off switch and emergency stop switch: conveyor belt speed control: operation of hydraulic control levers and splitting speed setting.

Due to these properties, the processor can be used even in more demanding conditions, and its maintenance is easy.




TELESCOPIC HYDRAULIC LIFTING TABLE

An option to be able to lift logs up to 4000 mm (option).



 PRESSURE FILTER

A pressure filter with a clogging indicator prevents dirt from entering the control valve. The clogging indicator on the filter indicates whether it has a proper flow (coloured green) or is clogged (coloured red) and needs to be replaced.
