Mecanil- SG280 G2

A game changer for the tree removal industry
Click images to view larger
Description:

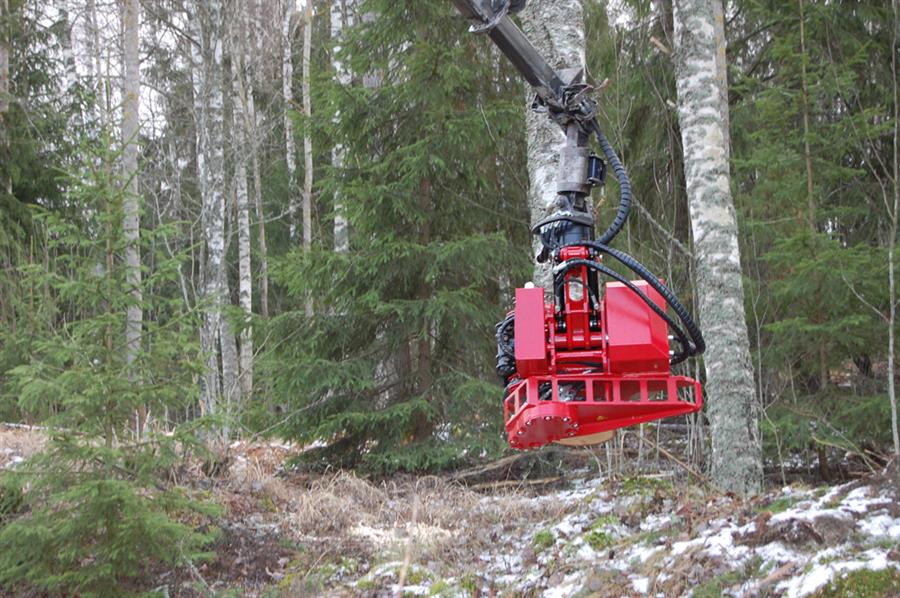

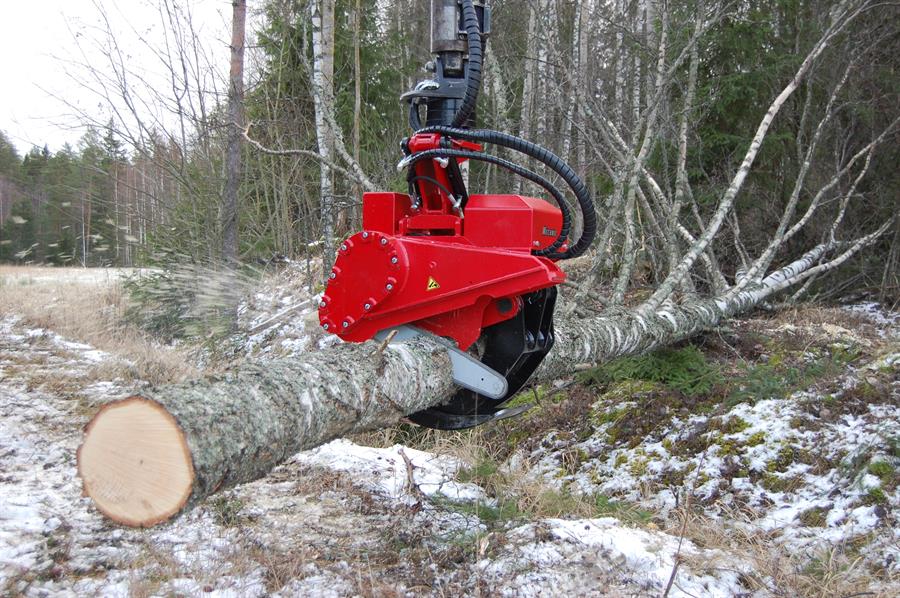

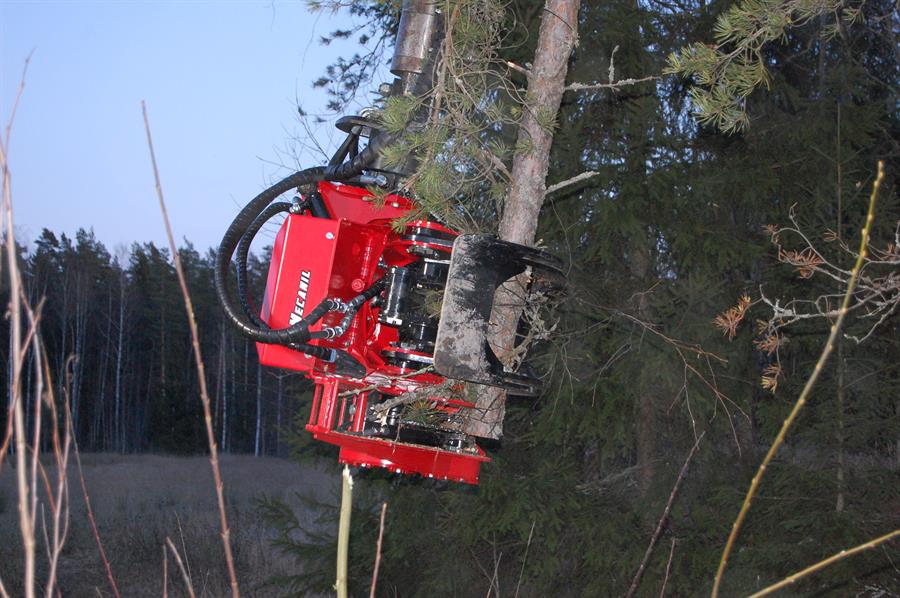

Easy-to-use and lightweight grapplesaw with tilt. The grapple saw is a combination of a high-powered chainsaw that can cut through wood within seconds, and a strong grapple that locks onto the tree allowing the operator to lower the limb to the ground in a controlled manner preventing property damage or injury to people below. Suitable for installation on various base machines.

FEATURES

  • Fast and easy to use – increases productivity
  • Stable both in felling and loading position
  • Full control over all functions – e.g. make the saw movement many times without opening the grapple.
  • Works perfectly as a traditional loading grapple
  • Easy to install
  • No additional hydraulic lines are needed – only grapple open and grapple close
  • Completely stepless control – for example, stop the tilt half way if necessary
  • Control everything safely from the ground via remote control

Control system alternatives

  • Standard: 2 hydraulic lines (grapple open/close) + Radio-control (incl. 2 batteries and a battery charger)
  • Option: 2 hydraulic lines (grapple open/close) + Cable control

Suitable base machines

  • Smaller knuckleboom cranes
  • Forest trailers with cranes
  • Tractors
  • Forwarders
  • Excavators (free hanging)
  • If you are considering installing this grapple saw on another base machine, please consult the Mecanil dealer.

Grapple claw alternatives

  • Standard: Energy grapple claws (open ended)
  • Option: Traditional log grapple claws (closed ends)
  • Option: A-model claws (claws with diagonal plates)
Technical Specifications:

Models

Model      Features

SG280-G2

  • 2 hydr. lines (grapple open/close).
  • Cable along the crane.
  • Separate control buttons that can be installed in joystick.
  • Without collecting unit.

 SG280-RC-T-G2

  • 2 hydr. lines (grapple open/close).
  • Radio-control with remote control you hold in your hand.
  • Without collecting unit.

 SG280-RC-M-G2

  • 2 hydr. lines (grapple open/close).
  • Radio-control with separate control buttons that can be installed in joystick.
  • Without collecting unit.

 SG280-A-G2

  • 2 hydr. lines (grapple open/close).
  • Cable along the crane.
  • Separate control buttons that can be installed in joystick.
  • Incl. collecting unit.

 SG280-A-RC-G2

  • 2 hydr. lines (grapple open/close).
  • Radio-control with separate control buttons that can be installed in joystick.
  • Incl. collecting unit.


Technical information



  SG280-G2 SG280-RC-G2 SG280-A-G2 SG280-A-RC-G2
Tilt function  Yes Yes Yes Yes
Collecting unit No No Yes Yes
Grapple size 0,30 m2 0,30 m2 0,30 m2 0,30 m2
Weight 345 kg 390 kg 420 kg 450 kg
Rec. working pressure 180-230 bar 180-230 bar 180-230 bar 180-230 bar
Rec. oil flow rate 60 – 100 l/min 60 – 100 l/min 60 – 100 l/min 60 – 100 l/min
Opening of grapple 1490 mm 1490 mm 1490 mm 1490 mm
Attachment rotator 173/6 173/6 173/6 173/6
Control Cable control,12V or 24V Radio control Cable control,12V or 24V Radio control
Cutting diameter, saw (22″) –> 550 mm –> 550 mm –> 550 mm –> 550 mm
Option: Cutting diameter, saw (25″)  –> 630 mm  –> 630 mm   –> 630 mm   –> 630 mm
