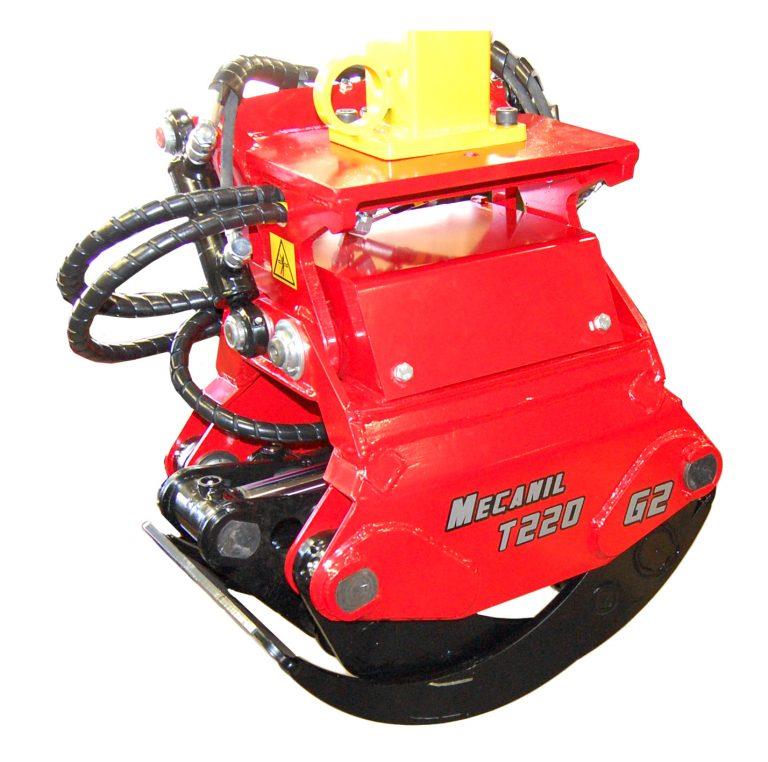

Mecanil- T220 G2

Unique log grapple with tilt function – Developed to make logging more efficient
Click images to view larger
Description:

The T220 tilt grapple is a normal loading grapple with built-in tilt function, but still works with the same hydraulics as a traditional loading grapple. You only need 2 hydraulic lines (grapple open/close).The tilt function is controlled wirelessly. Two extra control buttons/pedals (tilt up/tilt down) are included in the delivery. These control buttons can be installed in a suitable place. 2 batteries and a battery charger are also included in the delivery.

FEATURES

  • Fast and easy to use – increases productivity
  • Stable both in felling and loading position
  • Easy to install
  • No additional hydraulic lines are needed – only grapple open and grapple close
  • Completely stepless control – for example, stop the tilt half way if necessary

Control system alternatives

  • Standard: 1 double-acting hydraulic line, grapple open/close + Remote control for tilt function

Grapple claw alternatives

  • Standard: Traditional log grapple claws (closed ends)
  • Option: Energy grapple claws (open ended)
  • Option: A-model claws (with diagonal plates)
Technical Specifications:


Technical information



  T220-G2
Grapple size 0,22 m2
Weight 155kg
Rec. working pressure 200-230 bar
Rec. oil flow rate 30 – 50 l/min
Opening of grapple 1200 mm
Attachment rotator 173/6



Key Features:
Video:
Brochure Download:
