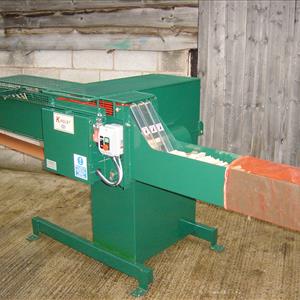

Fuelwood- Kindlet 200

Fully Automatic Kindling Wood Machine
Click images to view larger
Description:
Kindlet 200 is the latest version of the market leading Kindlet. It converts timber off-cuts, pallet waste and round logs into kindling. Its benchmark two second cycle time is capable of processing 1.3 solid cubic meters per hour, equivalent to 120 nets. Kindlet 200 has a compact design incorporating the ergonomic improvements that follow, to ease and improve the speed of operation, boost efficiency and reduce maintenance costs.

• The machine is fully guarded to ensure operator safety whilst allowing the conversion process to be observed, the top guard hinges above the splitting area allow the operator to raise the guard.

• Hinges are fitted at the rear of the machine aiding user and servicing accessibility.

• A changeover lever fitted at the front of the machine allows for quicker and easier user operation.

• The grease line station at the front of the machine allows for faster maintenance.

• The 3 point linkage and forklift pockets improve portability.

A wide range of power and bagging options are available to suit individual needs.
Technical Specifications:
Overall Dimensions:
Length 2376mm (Bare Machine)
Length 3342mm (+Output Chute)
Length 2610mm (+RotabaggaTM)
Length 5160mm (+Manual BaggaTM)
Width 1115mm
Height 1295mm
Weight 400kg

Power Supplies:
240v 1 Phase 2.2 kW 16amp
415v 3 Phase 4.0kW 16amp
Tractor PTO drive – min 10hp @400rpm and 12V DC supply
Tractor Hydraulic – min flow 15 lpm 180 bar and 12V DC supply

Timber Input:
Off-cuts up to 200mm (8”) square
Round logs 200mm (8”) maximum diameter
Length 140mm to 165mm (5.5” to 6.5”)

Timber Output:
1 & 3 Phase peak – 1.3 solid cubic meters/hour
(equivalent to 120 bags of 45cm x 60cm size)
Key Features:
  • Fully automatic operation
  • Converts timber off-cuts, pallet waste and round logs
  • Market leading 2 second cycle time
  • Changeover mechanism and Grease Line Station at front of machine
  • Robust design with 3 point linkage and forklift pockets for improved portability
  • Fully guarded with hinges to allow easier access to the splitting area and rear of the machine
  • Wide range of bagging options
