Fuelwood- Elevator

4.5 Metre Conveyor Designed specifically for Firewood
Click images to view larger
Description:

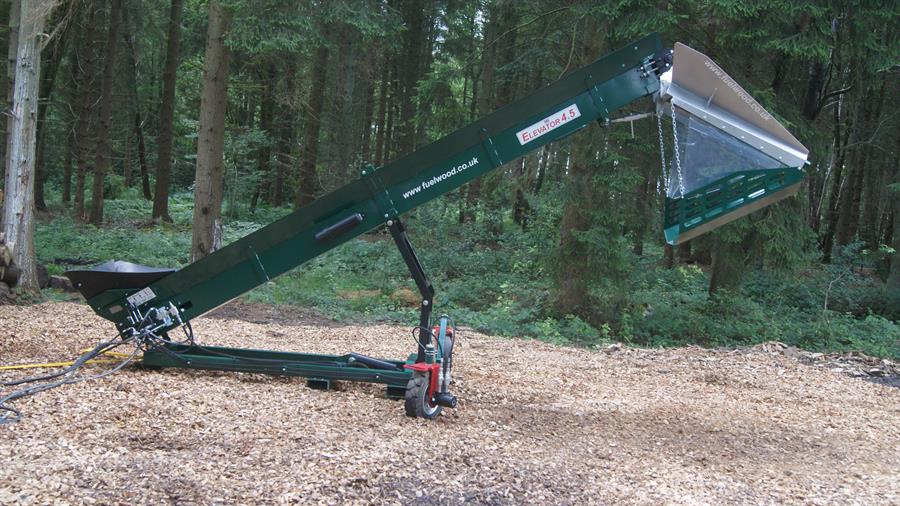

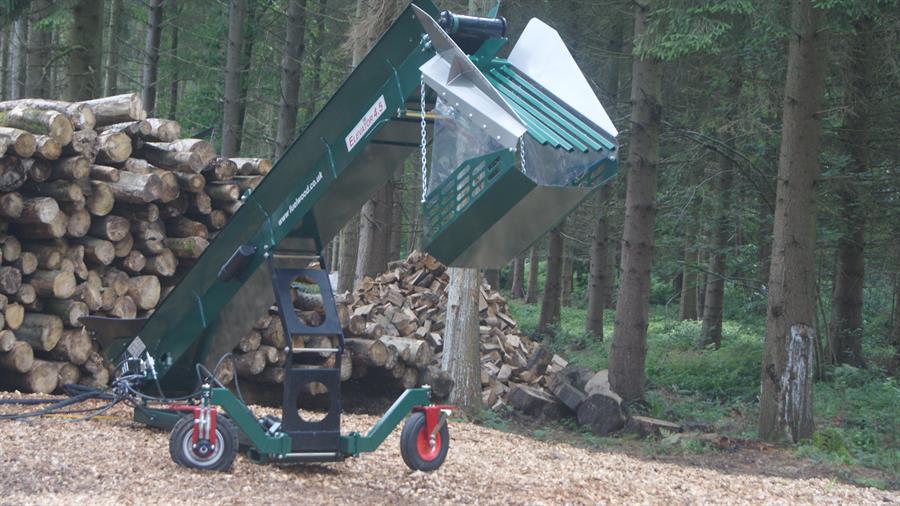

The Elevator is a 4.5 Metre conveyor designed and manufactured by Fuelwood. It has been designed to load Firewood. The wide position of the wheels make the conveyor easy and safe to move around by one person. The conveyor also can be adjusted to a very low height making it suitable to move large rings without the danger of them rolling down if the conveyor is at a steep angle.

Conveyor can be supplied without wheels of frame, fixed inline wheels or swivel/braked wheels.

Technical Specifications:

Overall Dimensions: Length of Bed 4.5m (14'-9")

Width of Bed 30cm (1'-0")

Weight 360 kg

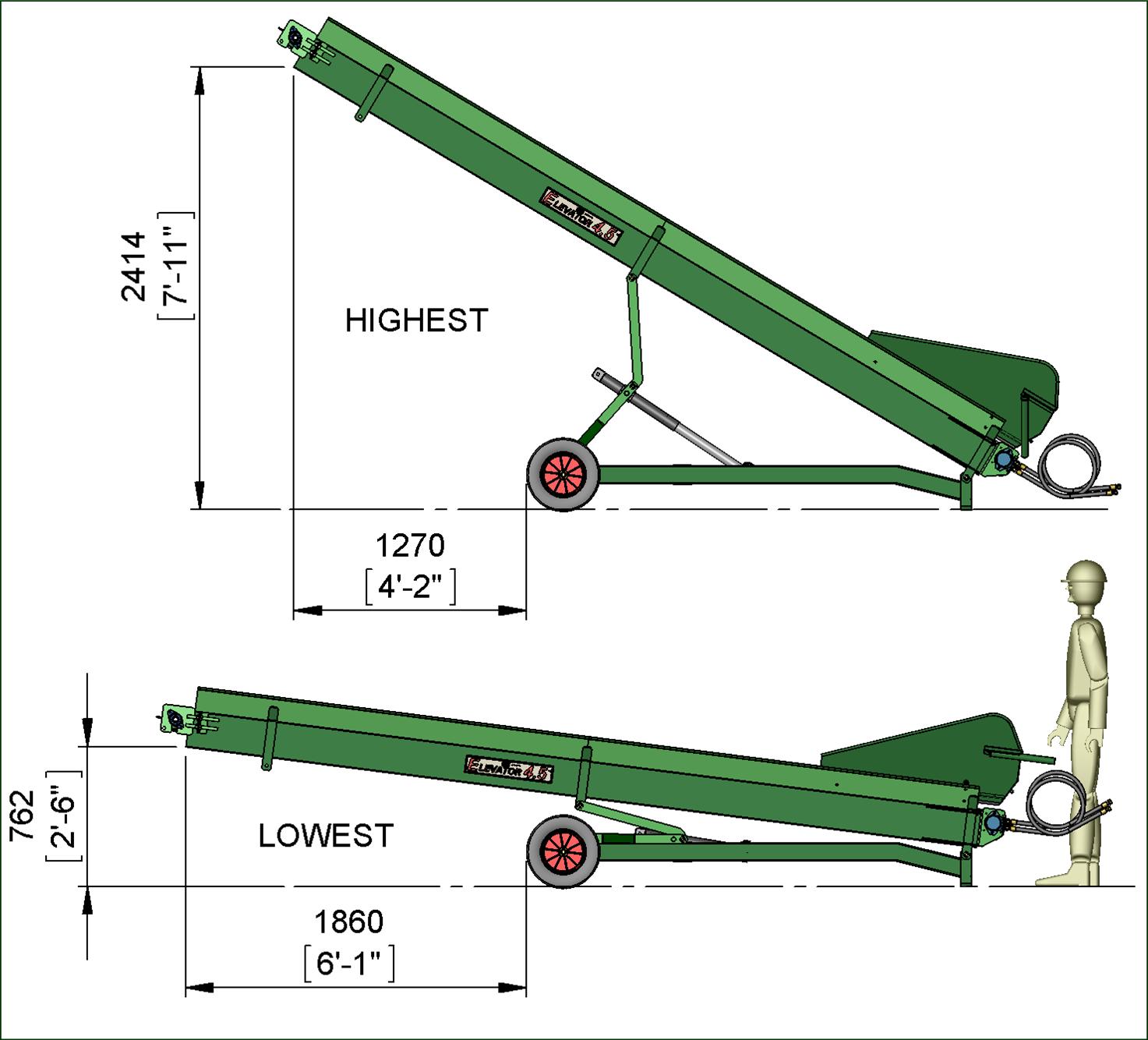

Height - adjustable (see diagram)

Drive Options:-

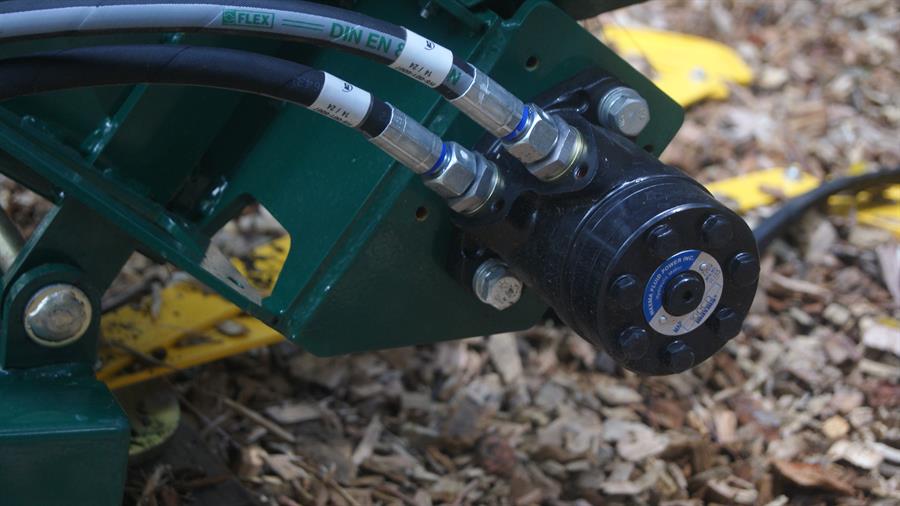

Electrical - 0.75 kW geared 240 volt single phase or 415 volt three phase Hydraulic - 15 ltrs per min 25 bar

Speed:-

Electric 25 metres per min

Hydraulic - dependent on flow rate but typically 25 metres per min.

Key Features:
  • Hydraulic and Electric Drive Options
  • Large Hopper for collection
  • Variable height easy adjustable
  • Strong high quality construction

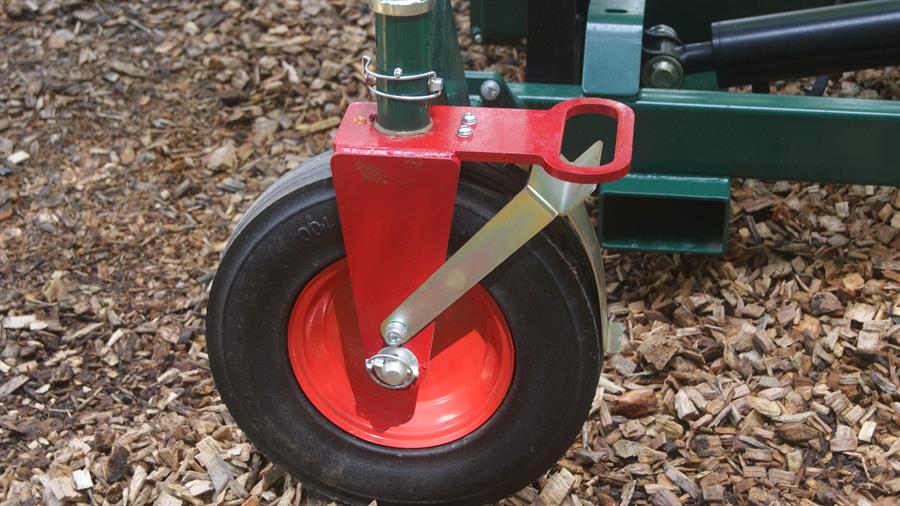

  • Inline or swivel wheel options
  • Drop down handles for easy movement

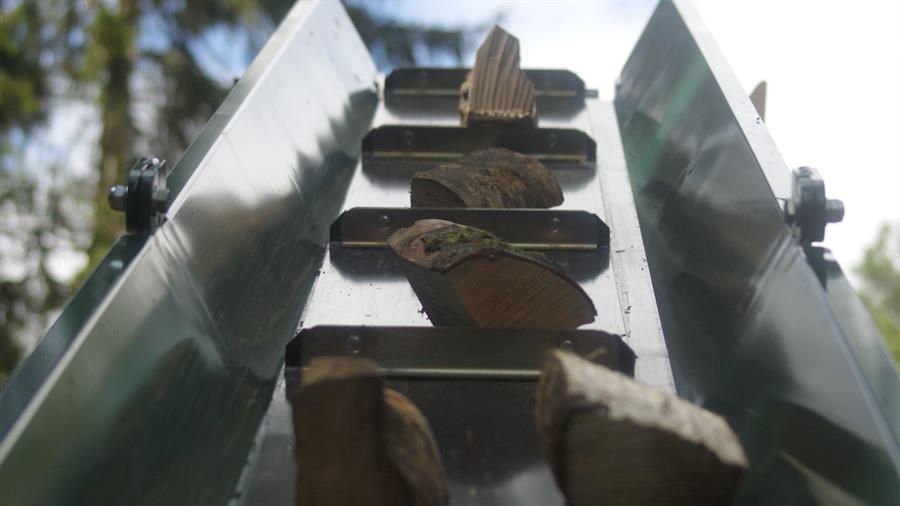

  • PVC cleated and jointed belt
Brochure Download:
