Wood Chip Blower PSS1
Wood Chip Blower PSS1
Wood Chip Suction Blower
Was £3,770 + VAT
Now £3,450 + VAT
>
>

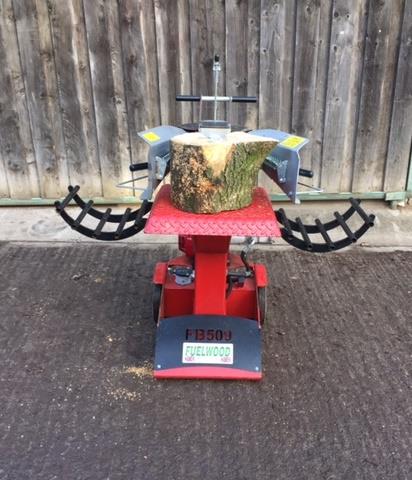

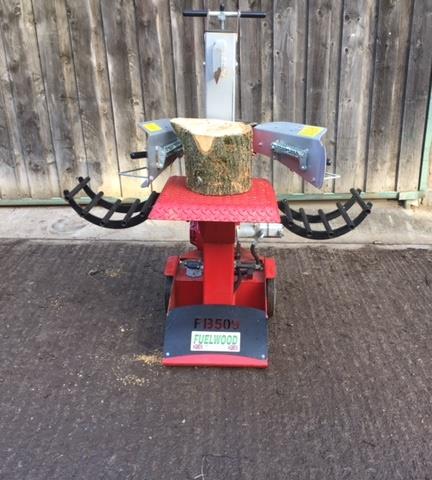

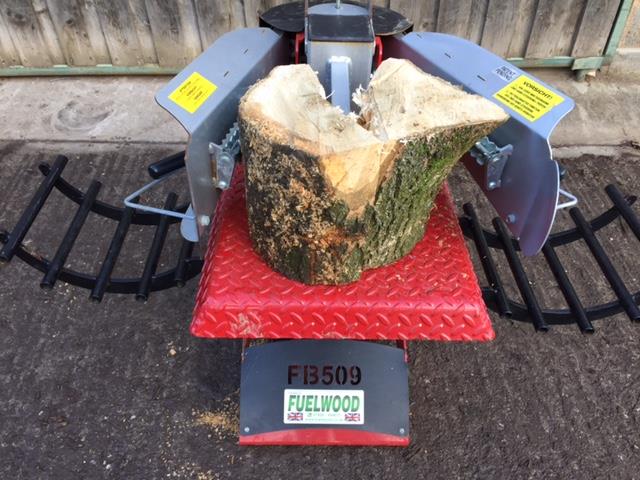

AMR- AMR FB509 9T Table Log Splitter

Vertical Table Log Splitter 9 tons splitting force
Click images to view larger
Current Promotion:
Ex-Demo
Ref/S/No: 262 Year: 2015
Was Price: £1,995 Now Price: £1,750
Type: 9 Ton Table Log Splitter With Honda Petrol Engine
Description:

The AMR FB500 series of logs splitters are ideal for splitting pre-sawn rings into firewood, the splitters have a large table to support the timber, 2 handle grips and control mean the timber is split accurately and safely. The splitting stoke is adjustable so increasing the efficiency of the machine. The return speed of these machines is very fast giving a very high output.

The large splitting table means the timber can be positioned under the knife to achieve the best splitting position meaning knotty timber can be split with ease.

Supplied on Solid Rubber wheels the machine can be moved around the yard and lifted by 2 people into trailers/pickups etc.

Technical Specifications:




FB500G4M FB500G4T FB500/E2M FB500/E2T
Splitting Force (tons) 6 6 6 6
Splitting Length (cm) 55 55 55-75-105 55-75-105
Weight (kg) 110 110 110 110
Electric 240V single phase X
X
Electric 415V 3 phase
X
X
Splitting Speed(cm/sec) 5  5 5 5
Return Speed (cm/sec) 16.7 16.7 16.7 16.7






FB500/05M FB500/05T FB500/05P
Splitting Force (tons) 7 7 7
Splitting Length (cm) 55 55 55
Weight (kg) 130 130 130
Tractor PTO

X
Electric 240V single Phase X


Electric 415V 3 phase
X

Splitting Speed (cm/sec) 4.8 4.8 5.3
Return Speed (cm/sec) 12.5 12.5 15.8






FB500/1,2M FB500/1,2T FB500/1,2ESS FB500/1,2P
Splitting Force (tons) 7 7 7 7
Splitting Length (cm) 55-75-105 55-75-105 55-75-105 55-75-105
Weight (kg) 138 138 138 138
Single or Double Pump Double n.a. Single
Tractor PTO


X
Honda Petrol Engine

X
Electric 240V single Phase X


Electric 415V 3 phase
X

Splitting Speed (cm/sec) 4.8 4.8 5.6 5.3
Return Speed (cm/sec) 12.5 12.5 16.7 15.8






FB509MDP FB509T FB509ESSDP FB509P
Splitting Force (tons) 9 9 9 9
Splitting Length (cm) 55 55 55 55
Weight (kg) 210 210 215 215
Single or Double Pump Double Single Double Single
Honda Petrol Engine

X
Tractor PTO


X
Electric 415V 3 phase
X

Electric 240V single Phase X


Splitting Speed (cm/sec) 8.2 5.5 8.7 6.3

Return Speed (cm/sec)

9.4 16.6 12.5 16.6

Rights for technical modifications reserved. Warranty 1 year.
Key Features:
