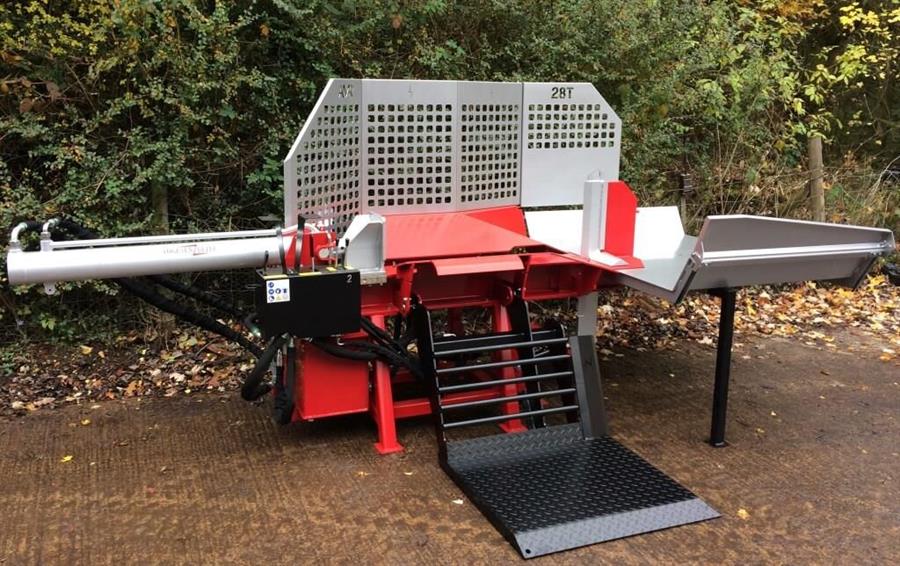

Designed to deal with the hardest of timbers, fast and efficiently.
Easily transportable, the 28 ton range is deployed to create a true working area so that the operator can control his work area with ease.
Hydraulic height adjustment of the splitting knife into 2 or 4 pieces. The output support table is very large and strong to support timber for re-splittting.
The unique shape of the main beam allows timber to be easily pulled back to be re-split and also supports shorter rings with out them 'rolling off' to one side.
The powerful hydraulics have automatic 2 speed function and the hydraulic splitting cylinder is retractable for transport.
|
HPF 28 |
HEL 28 |
HPEL 28 |
| Splitting Power (tons) |
28 |
28 |
28 |
| Drive |
PTO |
Elec. 415 |
PTO/Elec. |
| Weight (kg) |
1005 |
1069 |
1075 |
| Opening (cm) |
120 |
120 |
120 |
| Cylinder travel (cm) |
120 |
120 |
120 |
| Splitting speed (cm/s) |
24 |
22.7 |
24/22.7 |
| Return speed (cm/s) |
21.8 |
16.2 |
21.8/16.2 |
| Pump output (L/min) |
89 |
87.8 |
89/87.8 |
| Tank Capacity (l) |
85 |
85 |
85 |
| Available Options |
|
|
|
| Transport axle |
Y |
Y |
Y |
| 6 - way splitting knife |
Y |
Y |
Y |
Rights for techincal modifications reserved. Warranty 1 year.
Fast - Powerful - Safe
Easily control the section size and quality of the split billets
