AMR- Horiz/Vert Splitters

AMR - Horizontal and Vertical Log Splitters
Click images to view larger
Description:

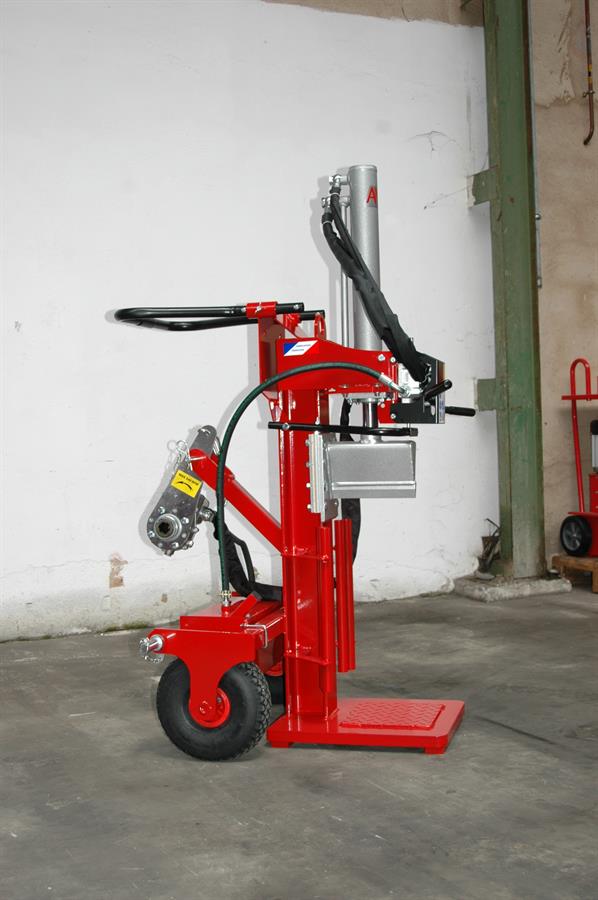

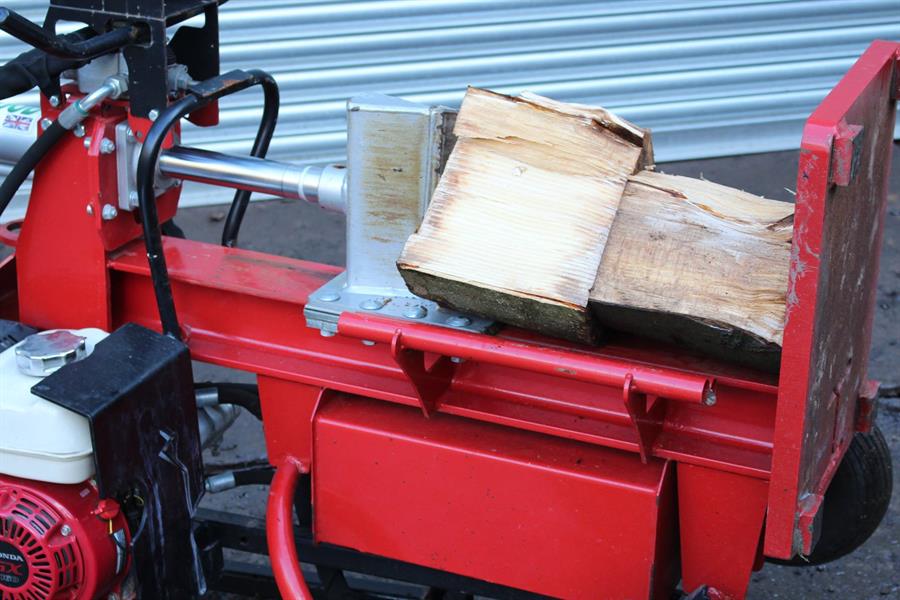

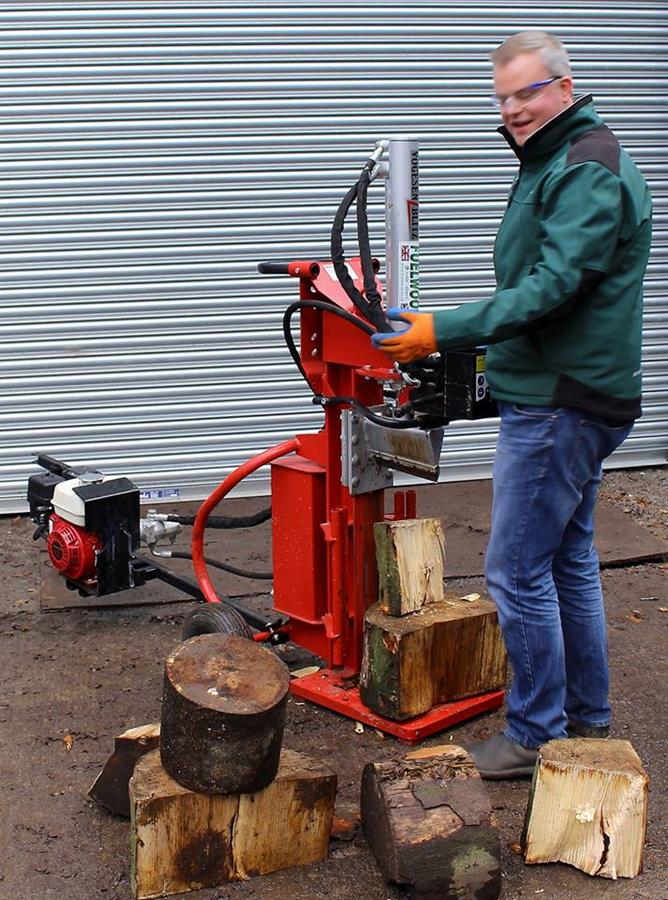

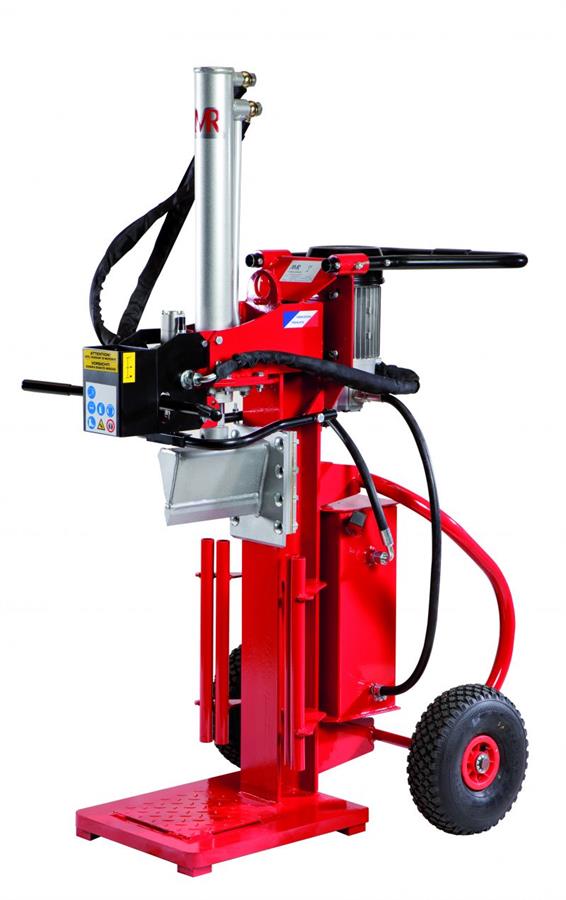

The AMR - HV Series of Log Splitters can be used in the Vertical or Horizontal position making them ideal for timber that varies in size. The vertical position is ideal for large rings as these will not have to be lifted manually up onto tables or beds. The horizontal position is ideal for smaller diameter rings, working at a better working level rings sit nicely on the supporting cradle.

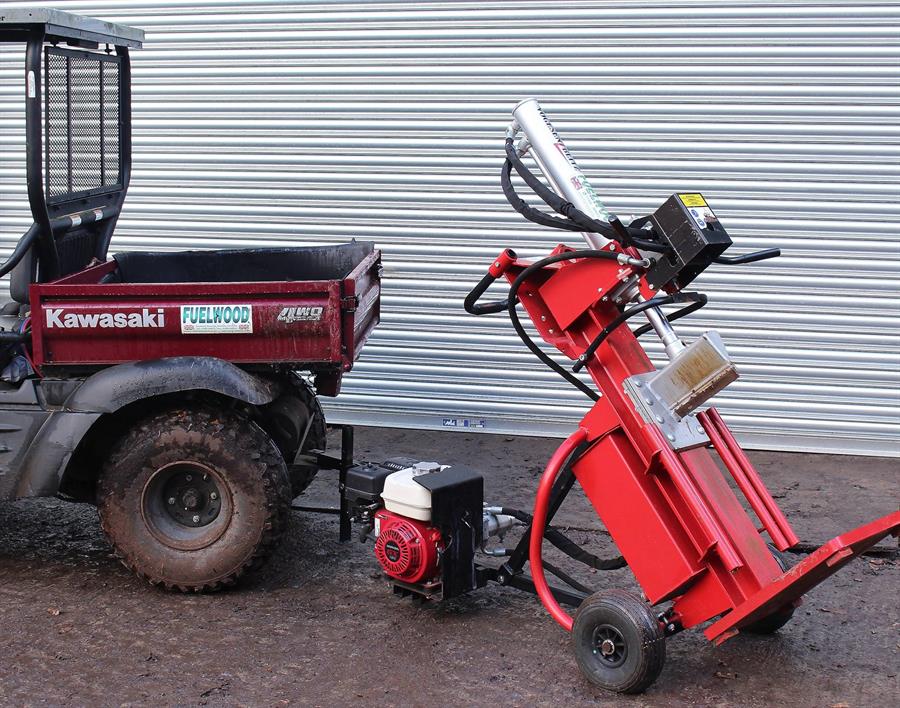

The machine is mobile on large pneumatic tyres and available in various drive options including 240 or 415volt electric, Honda Petrol Engine, Tractor PTO or Hydraulic.

Technical Specifications:




HVE09MDP HVE09T VHY5509 VPF5509 HVESS5509
Splitting Force (tons) 9 9 9 9 9
Splitting Length (cm) 55 55 55 55 55
Weight (kg) 200 200 185 195 200
Electric 240V single phase X



Electric 415V 3 phase
X


Honda Petrol Engine



X
Tractor PTO


X
Tractor Hydraulic

X

Single or Double Pump Double Single - Single Double
Splitting Speed(cm/sec) 14.8/6.6  13/5.6 - 18.9/9.1 18.9/8.1
Return Speed (cm/sec) 11.2 9.8 - 13.5 13.7







HVE12MDP HVE12T VHY5512 VPF5512 HVESS512
Splitting Force (tons) 12 12 12 12 12
Splitting Length (cm) 55 55 55 55 55
Weight (kg) 205 205 190 200 205
Electric 240V single Phase X



Electric 415V 3 Phase
X


Honda Petrol Engine



X
Tractor PTO


X
Tractor Hydraulic

X

Single or Double Pump Double Single - Single Double
Splitting Speed (cm/sec) 10/4.2 11.5/4.2 - 16.8/7.8 14.6/5.6
Return Speed (cm/sec) 7.2 6.8 - 13.1 9.8

Rights for techincal modifications reserved. Warranty 1 year.
Key Features:
Horizontal and Vertical working positions -Mobile - Robust - Fast efficient Hydraulics
Brochure Download:
