HM10-500K
HM10-500K
High Capacity - Crane fed - Wood Fuel Chipper
>
>

AMR- Vertical 12-27 ton Splitters

Vertical Log Splitters 12-16-20-25 ton Splitting Force
Click images to view larger
Current Promotion:
Special Offer
Ref/S/No: 122 Year: 2019
Was Price: £2,809 Now Price: £2,500

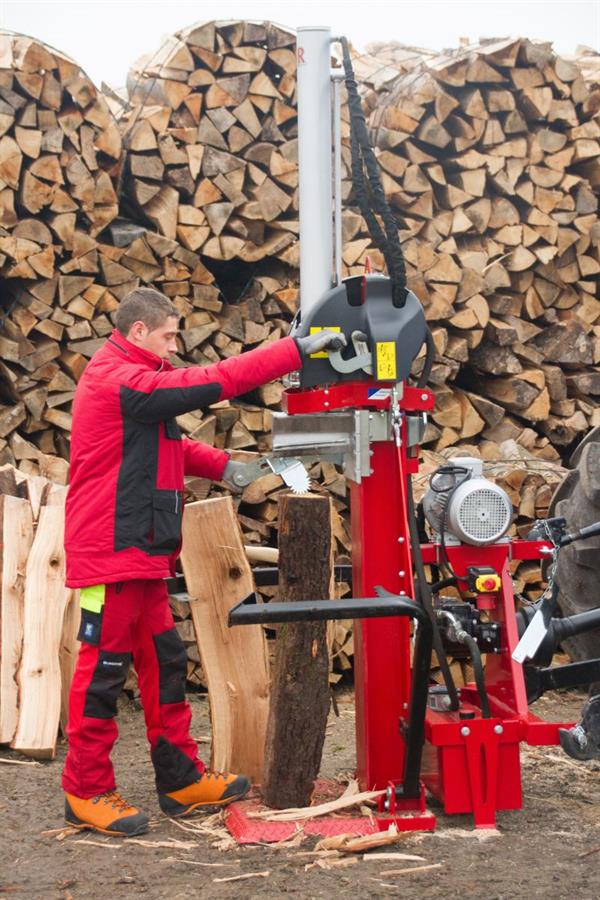

Type: VE12 12t 3 Phase Vertical Splitter With Log Lift
Description:

Vertical Log splitters for 1m timber,robust construction with solid non slip base plate.

2 Speeds for fast splitting.

Unique 2 handle/timber grip control holds the timber vertical while splitting.

Wide splitting knife splits timber with less effort.

Adjustable splitting length stroke.

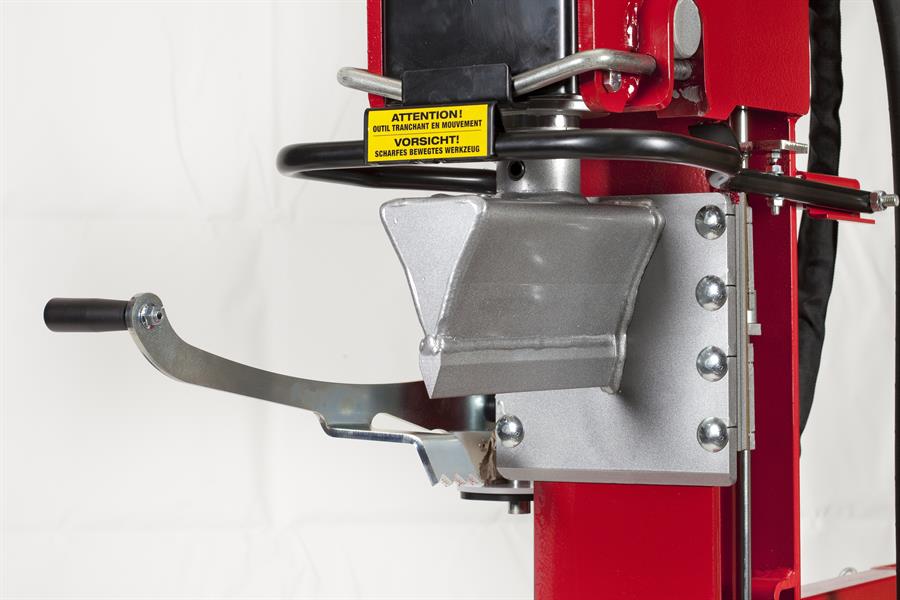

Mechanical log lifter

Retractable cylinder for easy transport.

Accessories:

Hydraulic log lifter.

Hydraulic Winch.

Grapple for Winch



.

Technical Specifications:




VEL 12 VHY12 VPF12 VESS
Splitting Force (tons) 12 12 12 12
Splitting Length (cm) 108 108 108 108
Weight (kg) 360 275 320 345
Single or Double Pump Single n.a. Single Single
Oil (L) 28 n.a. 28 28
Tractor PTO

X
Tractor Hydraulic
X

Electric 415V 3 phase X


Honda Petrol Engine


X
Splitting Speeds (cm/sec) 16.7/7.7  - 25.6/11.4 13.2/5.9
Return Speed (cm/sec) 12.5 - 18.9 9






VEL16 VHY16 VPF16 VPESS
Splitting Force (tons) 16 16 16 16
Splitting Length (cm) 108 108 108 108
Weight (kg) 390 310 360 370
Single or Double Pump Double n.a. Single Double
Oil (L) 28 n.a. 28 28
Tractor PTO

X
Tractor Hydraulic
X

Electric 415V 3 phase X


Honda Petrol Engine


X
Splitting Speeds (cm/sec) 20.9/9.5  - 27.8/10.6 18.1/8.7
Return Speed (cm/sec) 14.2 - 16 11.3






VEL20 VHY20 VPF20
Splitting Force (tons) 20 20 20
Splitting Length (cm) 108 108 108
Weight (kg) 500 425 475
Single or Double Pump Double n.a. Single
Oil (L) 40 n.a. 40
Tractor PTO

X
Tractor Hydraulic
X

Electric 415V 3 phase X


Splitting Speeds (cm/sec) 24.8/7.9  - 28/10.8
Return Speed (cm/sec) 15.4 - 16.4






VEL25 VPF25

Splitting Force (tons) 25 25

Splitting Length (cm) 108 108

Weight (kg) 545 530

Single or Double Pump Double Single

Oil (L) 62 62

Tractor PTO
X

Electric 415V 3 phase X


Splitting Speeds (cm/sec) 16.2/8  30.3/10.1

Return Speed (cm/sec) 11.7 14.9


Rights for techincal modifications reserved. Warranty 1 year.
