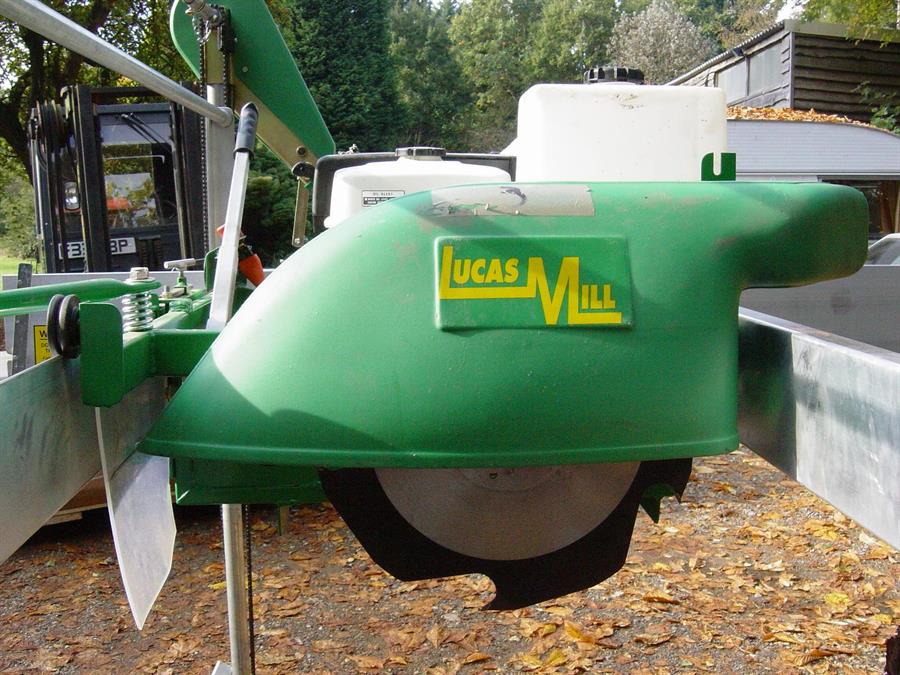

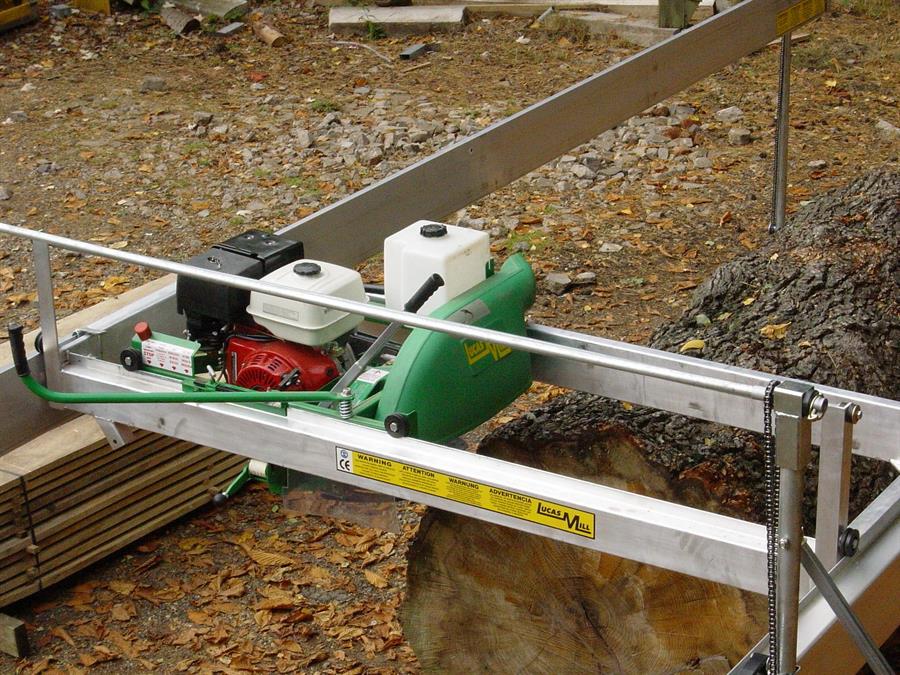

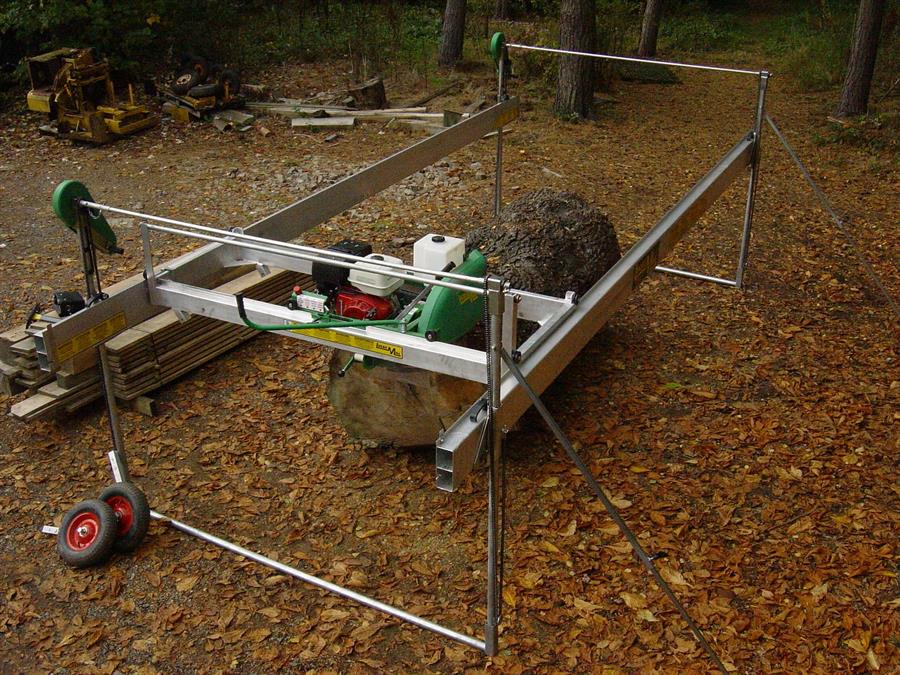

Lucas Mill- 616 - 6" Cut Sawmill

Complete 6" 14hp Lucas 614 Portable Sawmill
Click images to view larger
Description:

This model is ideal for smaller saw milling operations. Featuring a 16 H/P petrol powered Vanguard V-twin manual start engine, this machine provides excellent performance, with a more than affordable price tag. Perfect for the owner builder, cabinet maker or hobbyist wood-worker.

Lucas Model 616 Portable Sawmill Package Includes:
Engine & Saw Carriage
Swing Blade Sawing System
2 - Sets of End Frames & Braces
2 - 6metre Tracks
2 - Carbide Tipped Saw Blades
12 Volt Diamond Wheel Grinder
Tool Kit & High Impact Carrying Case

Options:-

2 metre extension beam extension kit

6", 8" or 10" slabber attachment

Dedicated slabber (complete head unit) 16hp Briggs & Stratton man start

Bevel attachment for weatherboarding

Log Lift for lifting timber

Metal Detector Kit approx 14" depth



Technical Specifications:



Engine 16H/P manual start, V-twin, petrol
Transmission

4” centrifugal clutch, 3 SPA875 belts
25mm shafts
1 piece hub shaft assembly

Sawblades 5 tooth TCT 2.8mm plate, 5mm kerf
Cut Length Up to 4.5m in standard form
Cut Sizes

Up to 160mm x 160mm (6¼” x 6¼”)
Double cut up to 160mm x 320mm (6¼” x 12½”)

Side Winder Optional
Weights
Carriage 118kg
Tracks 61kg
End-frames 76kg
Shipping Weight 316kg
Shipping sizes

Box: 1.03m x 0.75m x 2.85m

Tracks: 0.3m x 0.2m x 6.1m

Slabber Optional



Key Features:

Video:
Brochure Download:
