Mowi- Forestry Cranes

'Designed and Manufactured in Sweden – The Professionals Choice'

Mowi cranes come in 5 models. The cranes now have reaches ranging from 4.7 meters to 6.7 meters.

Mowi cranes have features not to be found in any other forest crane - they're the only original. With this crane and Mowi's well built forest trailers you have a forest rig that is versatile and easy to operate, making your work in the forest quick, efficient and fun - for many years to come. What are these features that make Mowi your best friend in the forest?

The crane - unique parallel-drive as no other. The design of the Mowi crane is unique. The parallel-driven crane beam was invented by Mowi's creator, Wiking Gunnarsson. Crane manufactures all over the world have tried to copy this idea but Mowi has the orginal.

Why Choose Mowi?

• you quickly learn to operate a Mowi the tip of the crane moves in a straight line at even speed with one simple operation
• "stronger" than conventional knuckle cranes - lift power in the right place
• you can load quicker and more safely with gentle movements and high precision
• excellent reach with quick method of working
• you can easily reach the front of the tractor and behind the trailer and also under ground level
• high lift height when working 'close in', which is important when unloading
• low oil flow saves fuel, causes less wear to your tractor and creates a better working environment

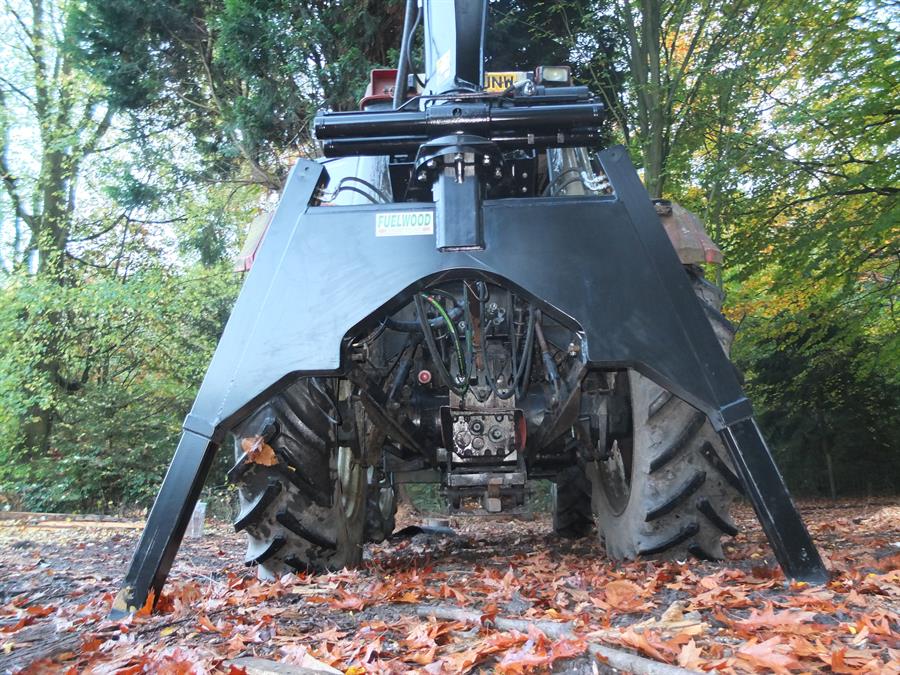

Cranes can be supplied with 3-point linkage which includes strong telescopic stabiliser legs, or mounting plates so the cranes can be mounted on to other equipment like Wood Chippers, Shredders or replacements for other Cranes.

The Mowi 3-point Linkage frame is makes a very practical solution, with the crane mounted on the 3-point linkage of the tractor the draw bar and PTO shaft are still accesible and most trailer drawbars will be lower than the stabiliser legs meaning turning circle is not hugely reduced.

Crane Control Options


2 X Mechanical Joystick (Standard on UK specification cranes	2 x Mecanical Joystick with 3 or 4 electrical switch, Light weight valve
2 x mechanical Joystick + 1 Electrical	Low Pressure hydraulic joysticks
Electrical Proptional Control either full size or mini joystick option
Electrical proportional control - Wireless Radio control

P20 - 4.7 metre reach

The P20 is the smallest crane in  Mowi series. It has a reach of 4.7 metres, a double slew motor and an overhead, well-protected boom cylinder. Designed for the 650 trailer. Lift torque 21 kNm. Equipped as standard with 2 x mechanical joystick valve, G160L grapple and GR30 rotator.

P25 - 5.2 metre reach

The P25 has a reach of 5.2 metres. Designed for the 850 trailers. Lift torque 26 kNm. Equipped as standard with 2 x mechanical joystick valve, G160L grapple and GR30 rotator.

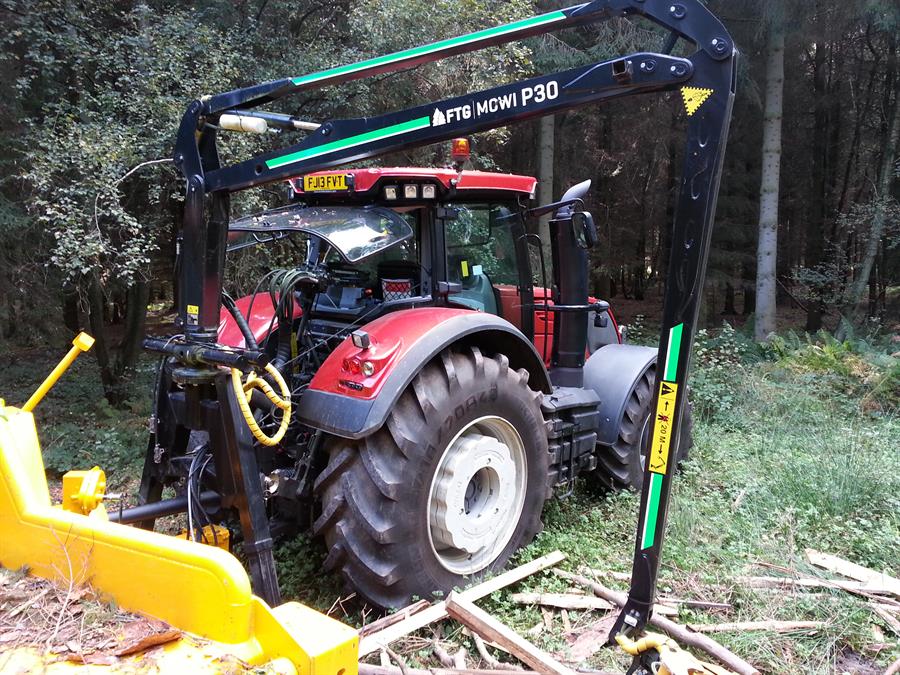

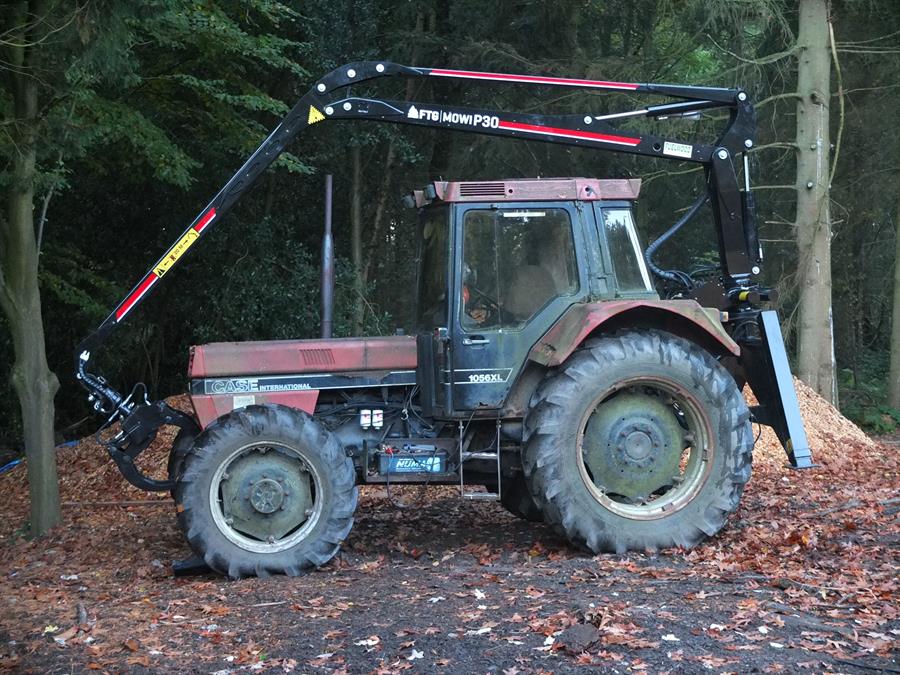

P30 - 5.7 metre reach

The P30 is the crane for those who need extra long reach.  Designed for the 850 and 1050 trailers. Lift torque 31 kNm. Equipped as standard with 2 x mechanical joystick valve, G260L grapple and GR30 rotator.

400 - 6.2 metre reach

The 400 has a reach of 6.2metres, designed using the experiences gained from Mowi's cranes. Lift torque 37 kNm. Equipped as standard with 2 x mechanical joystick valve, G260L grapple and GR30 rotator. Optional extras include an alternative hydraulic control system, EHC, PCL,remote control.

4567 - 6.7 metre reach

The 4567 is the largest Mowi crane model has a reach of 6.7 metres and like other models in the Mowi range has teh unique Parralel Motionwhich provides an even better working geometry. Well-protected cylinders and hoses. Lift torque is 46 kNm. Equipped as standard with GR40 rotator and G260LB grapple.
