Uniforest- 65 HPro FETF20 Grant

Forestry Winches PREMIUM - SERIES H

Current Promotion:

Special Offer

Ref/S/No: 593

Year: 2025

Type: 6.5ton Hydraulic Winch

Price: £9,321 + VAT

Description:

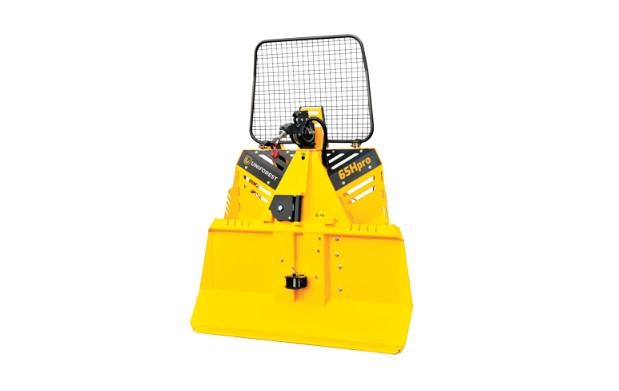

The hydraulic forestry winch 65H Pro with a pulling force of 6.5t  can be with an unwinding device (Hpro)

Foldable window guard makes transport easier. A winch recognizable design with a robust construction and a compact butt plate prevents wear and makes it easy to work with.


  • SMART 3in1 AUTO STOP function
  • Unwinding device
  • Control console
  • Plenty of room on the front side of the butt plate
  • Foldable window guard
  • Robust construction
  • Superior design with ergonomic shape

We also have bigger models available up to 12ton

Grants details:

FETF20 - Timber winches

Expected average cost of item (£): 8,501

Percentage paid towards item: 40%

Grant amount (based on a quantity of 1) (£): 3,400Score: 41

Item must :

  • be a timber winch
  • be either tractor or forwarder mountable
  • have automatic safety braking
  • be controllable remotely using an electric cable or radio control device
  • have a pulling force of 65 kilonewtons (kN) or more
  • come with at least 9m of wire rope
  • have a logging plate
  • have a protection guard to protect driver when seated in tractor cab

You must provide this item’s serial number when you submit your claim for payment.

https://www.gov.uk/government/publications/farming-equipment-and-technology-fund-2025/productivity-items-and-specifications-farming-equipment-and-technology-fund-fetf-2025

Technical Specifications:


45H 45Hpro 55H 55Hpro 65H/HF 65Hpro/HFpro 85H 85Hpro 95Hpro
Pulling force kN 45 45 55 55 65 65 85 85 90
Wire rope medium speed m/s 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Drum capacity (length/diameter)
mm/mm 70/10 70/10 70/11 70/11 80/12 80/12 90/13 90/13 75/14
Opt 135 /9 135/9 110/10 110/10 - - - - -
Opt 110/10 110/10 90/11 90/11 120/11 120/11 120/12 120/12 -
Opt 90/11 90/11 75/12 75/12 100/12 100/12 100/13 100/13 90/13
Recommended tractor power kW 37-50 37-50 40-55 40-55 45-70 45-70 50 min. 50 min. 55 min.
Recommended tractor power HP 50-68 50-68 54-75 54-75 61-95 61-95 68 min. 68 min. 74 min.
PTO shaft revolutions
rpm 540 540 540 540 540 540 540 540 540
Dimensions










Standard Width mm 1490 1490 1590 1590 1680 1800/1685 1800 2000 2000

Optional Width  mm - - 1800 1800 1800 - 2000 - -

Hydraulic hinged butt plate Width mm - - - - - - - 2000 (optional)

Depth mm 490 490 490 490 750 750 780 780 780

Height excluding guard mm 1400 1500 1480 1580 1800 1800/1685 1800 2000 2000

Height including guard mm 2170 2170 2300 2300 2300 2300 2300 2300 2300

Weight without wire rope kg 395 421 409 435 564 564/595 613 649 669
Trailer tow hitch
Lower pulley
Chainsaw holder
Pickaxe holder
Foldable window guard
Multi-plate clutch
Unwinding device
Auto stop function
Smart 3in1
-
-
-
-
Dedicated valve for constant wire rope tensioning
-
-
-
-
Wire rope unwinding speed adjustment
-
-
-
-
Control
Electro-hydraulic Electro-hydraulic Electro-hydraulic Electro-hydraulic Electro-hydraulic Electro-hydraulic Electro-hydraulic Electro-hydraulic Electro-hydraulic
Linkage cat. I, II I, II I, II I, II II,III II,III II,III II,III II,III
Standard,
Optional
Scroll left<>right for more detail
Key Features:


SMART 3IN1

(1) When pulling logs with a tractor, you may encounter some obstacles on the road (hill, roots etc.). If the tractor is not able to overcome these obstacles, the unwinding function can be switched into the mode without the assistance of the unwinding device and you can continue driving with a taught wire rope between the winch and the load. (2) The unwinding device can be turned on and off without delay (the standard model has a 1.5 sec. delay). (3) The SMART 3in1 function ensures additional tension of the wire rope between the unwinding pulley and drum. This function is only available with the remote controls Teleradio, Terra funk and manual console.

UNWINDING DEVICE AND AUTO STOP

To make the wire rope unwinding easier you can choose a winch with an integrated unwinding device. This type of winch also guarantees a constant tension of the wire rope between the unwinding pulley and the drum, thus preventing damage to the drum or pulley and enabling a longer service life. AUTO STOP function (limit switch) automatically stops the function of winding the wire rope on the drum. This function prevents mechanical damages of the unwinding device, entanglement and wire rope damages.



HAWE ELECTROMAGNETIC CONTROL

HAWE electromagnetic control valves with high pressure filter in the control block. Hydraulic components are galvanically corrosion protected. The oil tank is made of stainless steel.



GEAR-DRIVEN HYDRAULIC PUMP

Hydraulic pump is gear driven. High-pressure oil filter preventing dirt from entering the hydraulic block.
