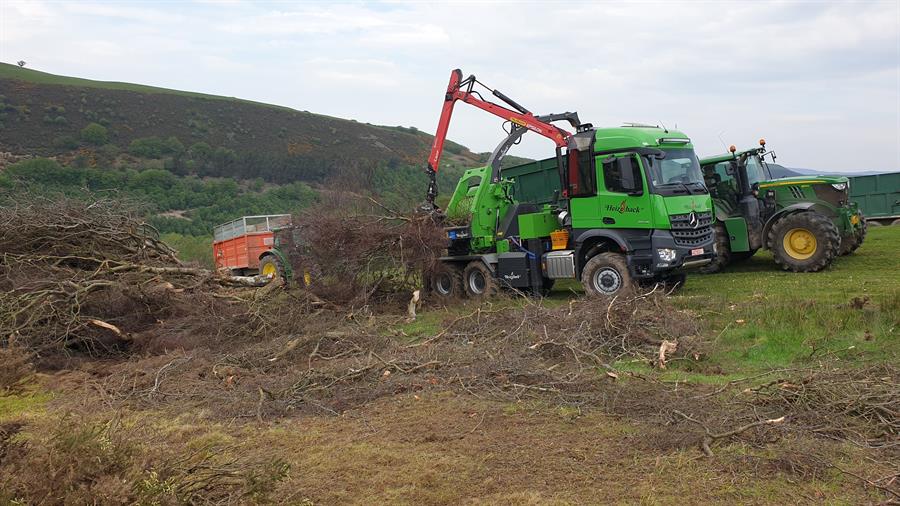

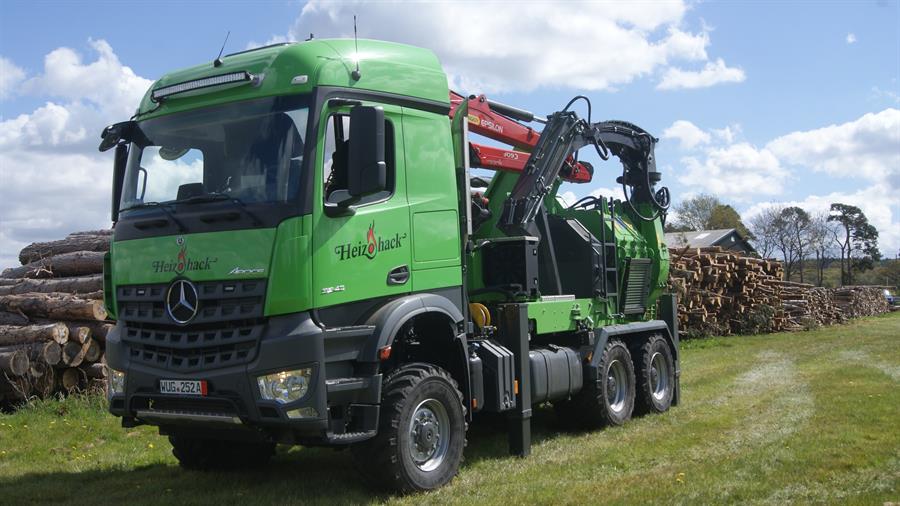

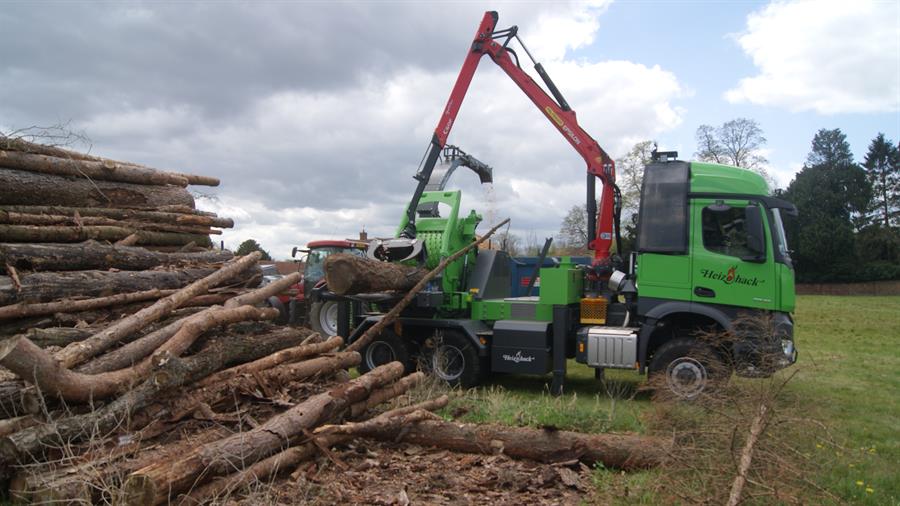

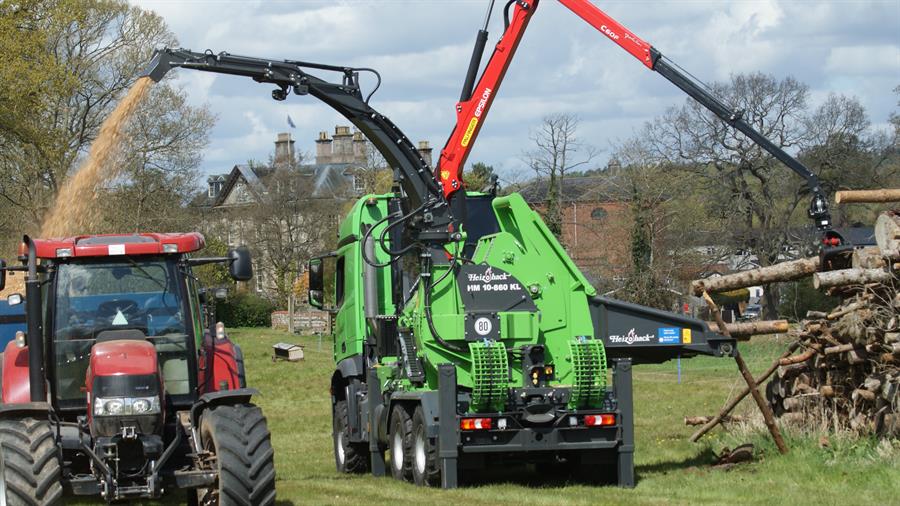

Heizohack- HM10-860KL

New entry level Lorry mounted Wood Fuel Chipper

With the HM 10-860 KL, Heizomat offers a special designed powerful and professional wood chipper, set up on a 420 HP Mercedes Benz AROCS 3342 AK Euro 6 with 6x6 wheel drive.

All functions are to be operated directly from the air-conditioned driver cabin.

In addition, the supplementary functions, such as in-feed table, ejector spout swivel and rotation and also the ejector flap can be controlled by radio control. This is among other things particularly helpful in the filling of containers by a second man.

The powerful wood feed is achieved by a pressure roller, a conveyor belt, a front end in-feed roller at the end of the in-feed table and additionally by a conveyor belt integrated into the in-feed table. All feed devices are hydraulically driven.

The rotor drive is undertaken via a highly elastic V belt transmission unit, which is driven by the load carrying gearbox-independent supplementary drive (NMV) with maximum motor torque of the Mercedes Benz AROCS.

The HEIZOMAT lorry chipper has an Epsilon Palfinger M80F101 set-up crane.

Technical Specifications:

Technical Details of Truck Chipper Machine:

HM 10-860 KL

Infeed height

800 mm

Trunk diameter

650 mm

In-feed width


Rotor shaft diameter

100 mm

Drum diameter

690 mm with quick exchangeable blades

Counter blade

multi piece hard metal plates


conveyor belt; length 900 mm

top roller with steel teeth

diameter 800 mm

front end roller at the infeed table

Optional infeed table with conveyor belt, length 900mm

length oft the in-feed table 1500 mm


3 transversal auger

5 Infeed chain clearance

Rotor cover

for additional sieve


discharge chute hydraulically foldable, adjustable for height and rotatable

hydraulic discharge flaps adjustment

ejecting height maximum 5,55 m

wear plates at the discharge chute, discharge flaps and blower housing armoured


remote Control in the drivers cabin, with control panel for all functions for the wood chipping machine

automatic load-dependent infeed control with intergraded cycle mode

two day counters and one overall operating hours counter

infeed speeds infinitely variable

infeed direction reversible

Radio control T60-1
for raising/lowering discharge chute, discharge chute rotation right/left, raising/lowering discharge flaps, raising/lowering infeed table

Foot pedal pressure roller; for raising/lowering the pressure roller

Foot pedal of infeed movements backwards; for reversing the rotation movement of all feed devices

New 2 speed infeed controlled by foot pedal

camera for reversing at the rear of the vehicle and camera on discharge chute; Monitor in the driver cabin; Brigade type


yellow green silk matt   RAL 1028

nova grey silk matt       MB 7350


with heavy duty V belt transmission unit
high speed direct drive via the lorry engine (NMV)


LED headlight 4 x on the driver's cabin, 1 x on the discharge chute

windshield wipers with cleaner at the operator place screen

electrical lockable, ventilated operator seat inside the cabin; no passenger seat any longer

automatic trailer coupling: Ringfeder; bolt diameter 50 mm

compressed air hose reels - fire extinguisher

4 hydraulic support legs

sieve holder for additional sieve


Technical Details of Crane Setup

Palfinger Epsilon C60F86

Lifting torque gross


Lifting torque net

61,0 kNm

Maximum reach


Lifting capacity at 8m

720 kg

Slew Torque

20,0 kNm

Slew Angle



1170 kg


without swing brake


Halogen work lights x 4


Danfoss joystick control with intergrated chipper functions


Technical Details of Lorry

Mercedes-Benz AROCS 3342 AK 6x6

Engine Power

310kW / 421 hp

Running RPM

1,300 - 1,600

Exhaust standard

Euro 6


2,00 m


3,90 m


2,55 m


7,80 m


3,95 m


Front Axle 385/65 R22.5

option 445/65R22.5 Alliance

Rear Axle 315/80 R22.5

option 600/50R22.5 Alliance


Green Silk matt RAL 1028

Grey silk matt MB7350
