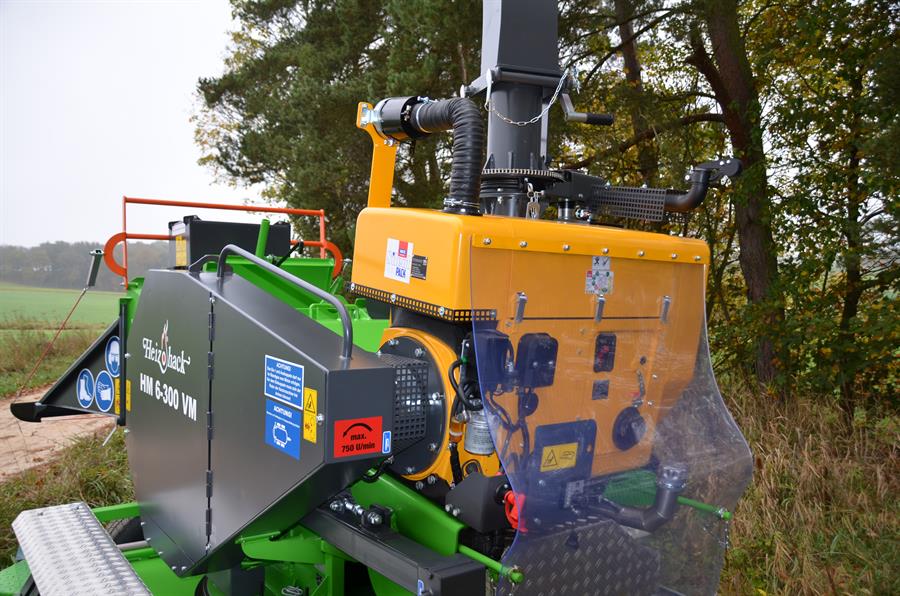

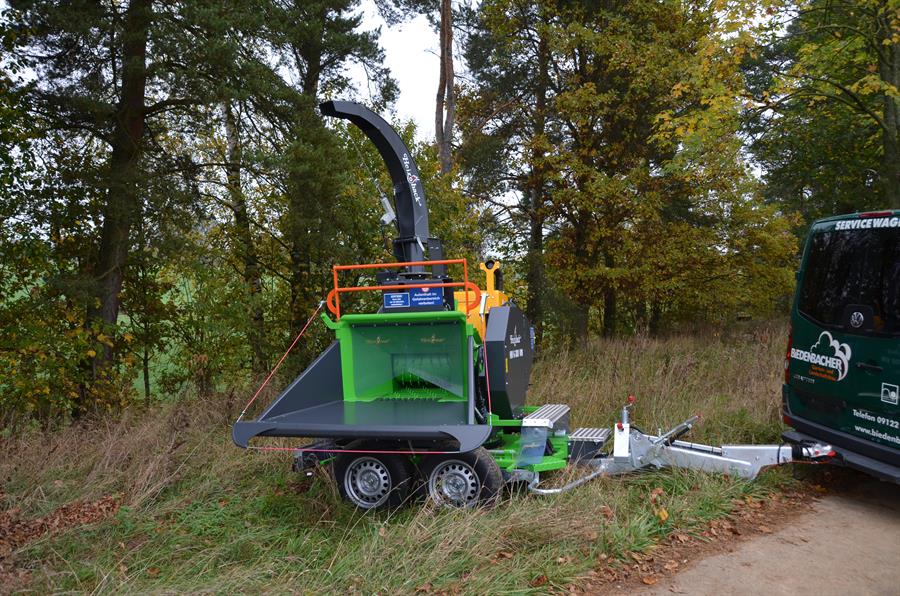

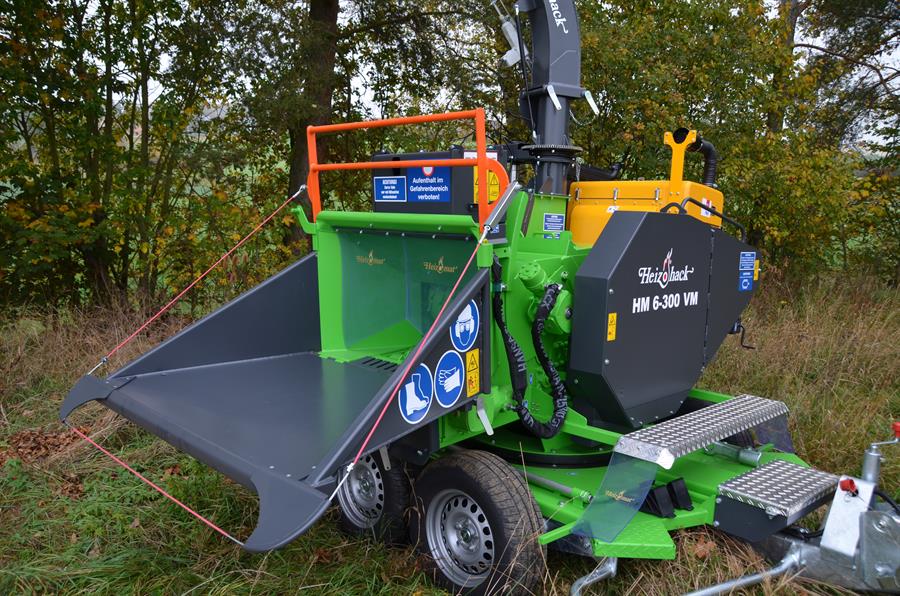

Heizohack- HM6-300VM

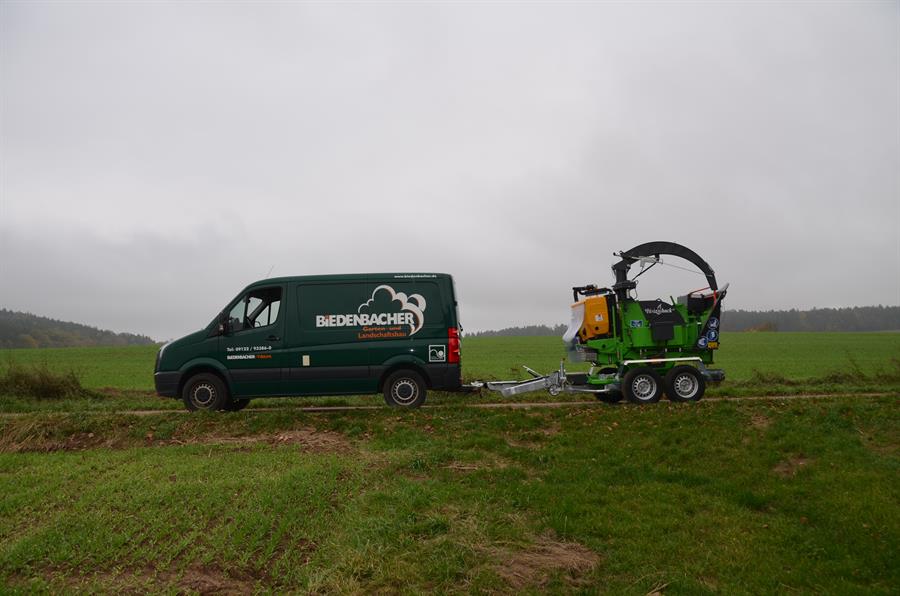

Self Powered Road Tow Mobile wood fuel chipper
Click images to view larger
Description:
The Heizohack HM4/6-300 series of wood chippers are ideal for owners of wood chip boiler systems to produce quality wood fuel chip for there own use. Both the HM4-300 & HM6-300 have a maximum chipping diameter of 30cm (12") and as all Heizohack chippers are supplied with the Heizohack 'Stress control' system which ensures a quality chip by controlling the in-feed speed of the chipper according to the power of the tractor driving the chipper.

The large in-feed height of 30cm allows you to process bushes, branches, fence poles, saw mill waste etc., even entire tree trunks into high grade wood chips


Manually Fed
Wood Chippers
The manually fed HEIZOHACK- wood chippers can break down all wood waste, such as slats, beams, logs, blocks or branches and trunks with a diameter up to a maximum of 300mm or 400mm. A steel conveyor belt and a pressure roller with welded tongs ensure a powerful and reliable feeding of the material.

The HEIZOHACK- wood chippers are equipped with a low drag drum chip rotor. Thereby flawless operation is also possible with low drive performance and the fuel consumption is
reduced. The drive can take place using a propeller shaft, via an internal combustion engine (HM 6-300 VM) or via an electro-motor (HM 4/6-300 EM, HM 5/6/8-400 EM).

The hydraulic feed units supply is undertaken via it´s the own on-board hydraulic system.

An external oil supply is not necessary. The size of the wood chips can be influenced by the individually adjustable feed speed and the easily exchanged sieve. The ejection of long pieces is prevented by the sieve.

The counter-knife can be used quadrilaterally.

The quick exchangeable blades can be re-sharpened when fitted.

The feed table and the ejector spout are foldable and supported by pneumatic shock dampers.

Upon request, the ejector spout rotation and the ejector flap adjustment are possible by remote control.

The feed speed is adjustable via a flow divider and the direction of the feed elements reversible by the feed safety lever.
Technical Specifications:



Height of Feed: 300mm
Width of Feed:

539mm

Feed:

Pressure roller with steel teeth (Ø380mm)

Steel conveyor with steel teeth 600mm long

In-feed table 900mm long

Sieve: Standard Mesh 35/40mm
Drum: Ø450mm with quick exchangeable blades
Flywheel: 130kg
Ejector: Manually foldable and rotatable; supported by pneumatic dampers
Controls:

Automatic stress feed control

Two day counters and one overall operating hours counter

Conveyor in-feed speed infinitely adjustable

Engine: Hatz 4L41C - Air-cooled four stroke diesel engine with direct injection 48kW/65hp

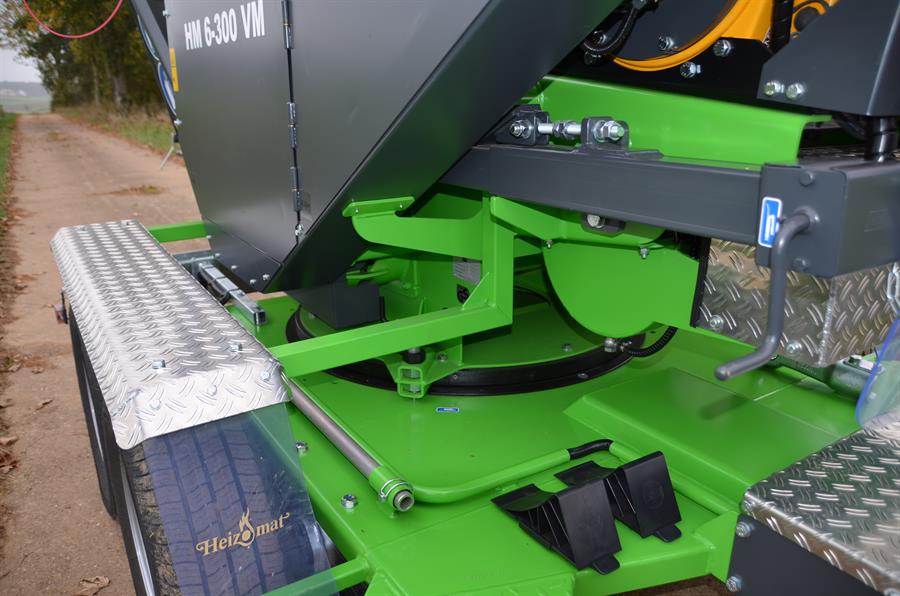

Live Ring: 270° rotatable
Chassis:

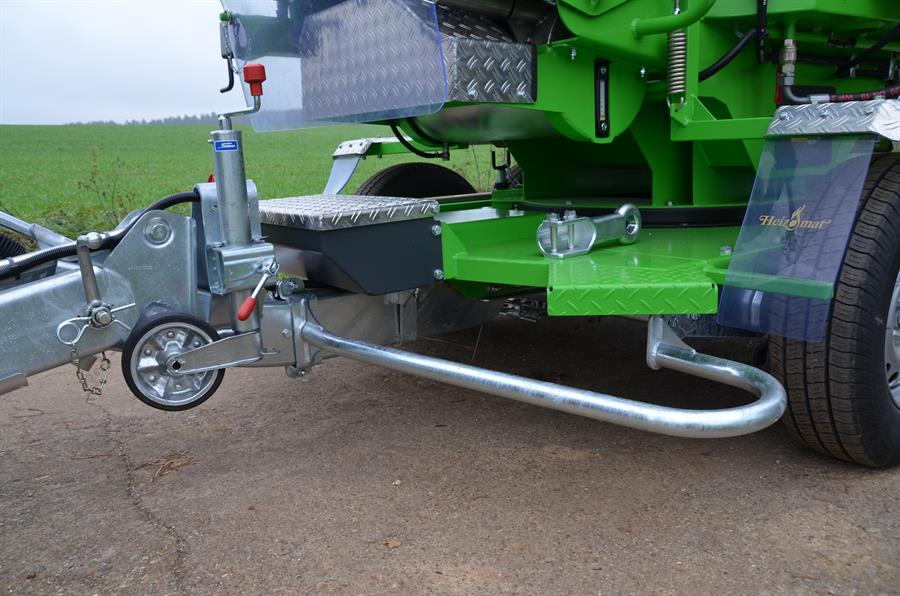

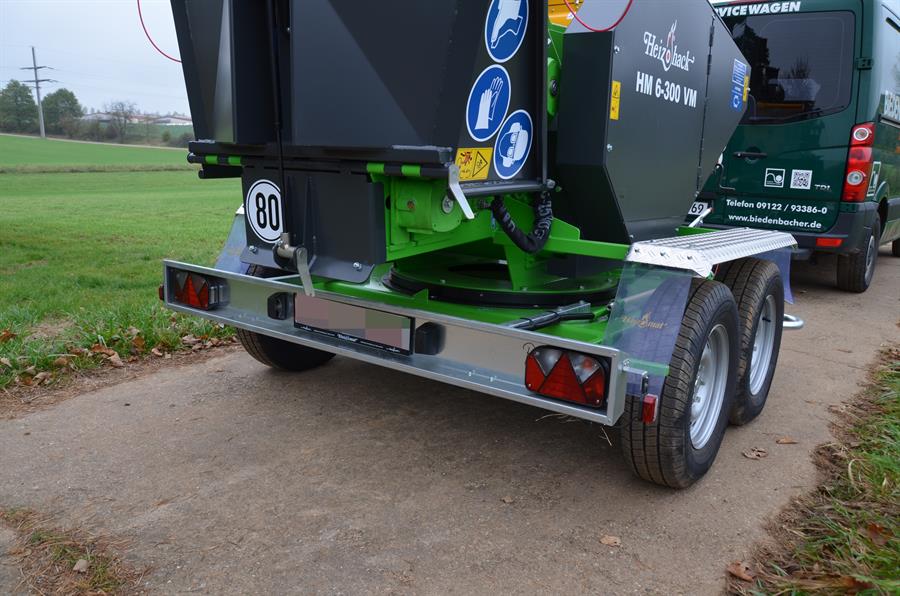

ALKO tandem chassis 80km/h inertia brakes, drawbar height adjustable, tyre 225/70 R14

Hitch: DIN trailer coupling ring
Support load: 100kg
Weight: 3500kg



Key Features:

Alko Road Tow Chassis with 225/70 R15 Tyres

Hatz 65hp Diesel Engine

270 degree Turntable
