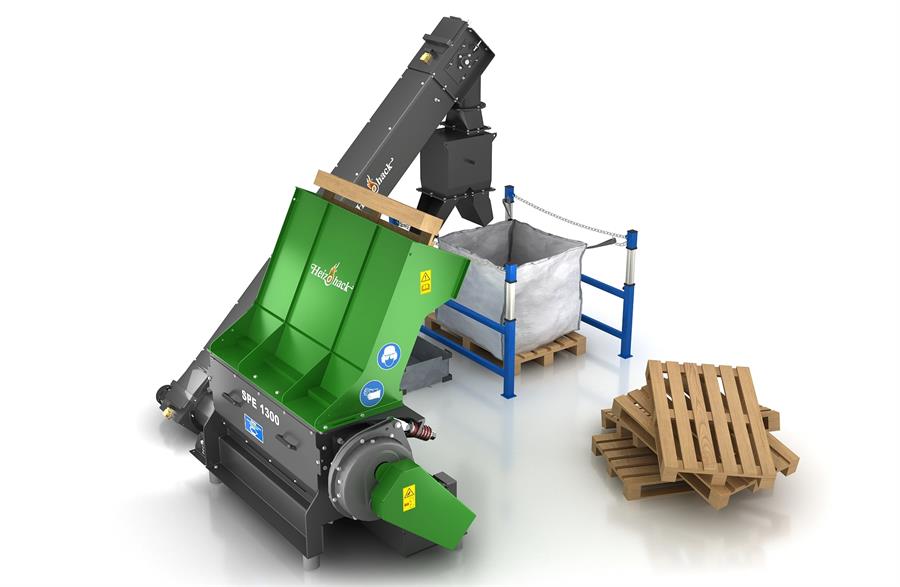

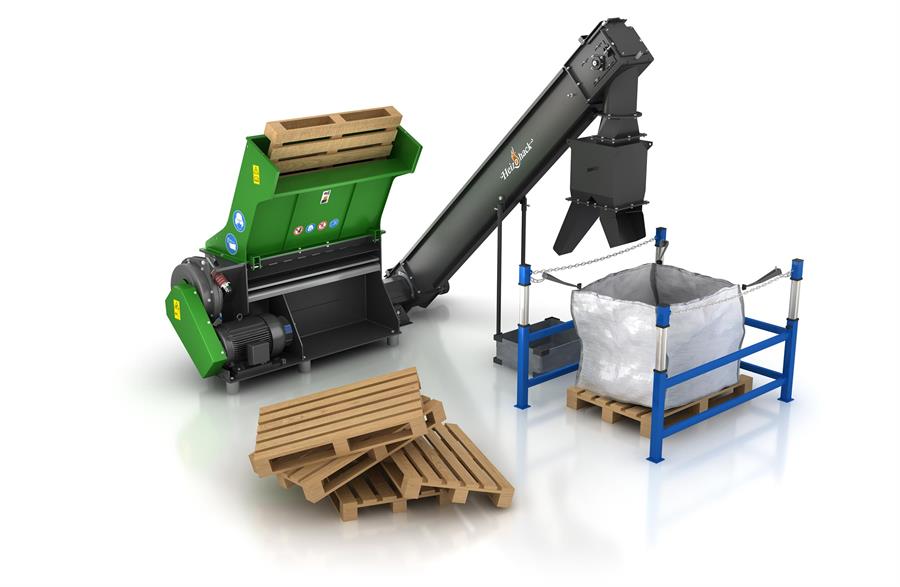

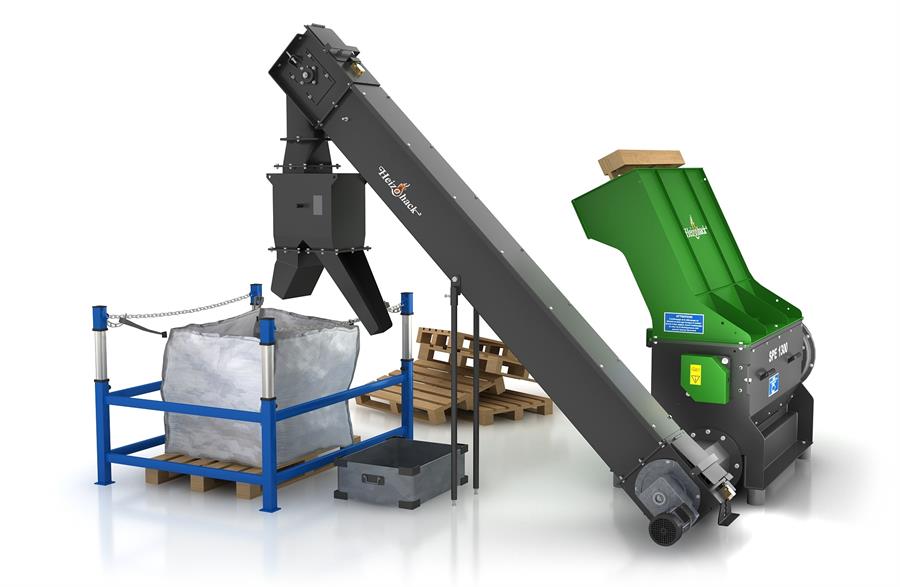

Heizohack- Pallet Chipper SPE 1300

The manually fed pallets chipper SPE 1300 has been constructed specifically for shredding pallets and wood waste to high quality wood chips. Suitable for Biomass boilers Nails used in the construction of the pallets do not damage the blades.
Click images to view larger
Description:

http:///The manually fed pallets chipper SPE 1300 has been constructed specifically for shredding pallets and wood waste to high quality wood chips.
The results of the use of this stationary driven machine are precious wood chips with a size from G30 to G50. There can be achieved an hourly throughput up to 30 pallets.
The chipper has a reversible counter knife and 36 rotating cutting blades, which are intended for a two times utilization. As there is no forced-feed mechanism, the feed is made current-saving due to the own weight of the chipping material. The drive of the cutting unit is performed by a belt drive via electric motor.
In developing the machine, attention was paid to be simple to operate and to keep maintenance expense to a minimum.
In order that the wood chips obtained can be conveyed out of the offered pallets chipper, normally a cross-auger on the bottom is necessary. This is available in total lengths of 1,5 m up to 6,0 m. The increments are made in steps of 0,1 m. The length of the open area of the cross-auger, which is located below the chipper, always amounts to 1,3 m.
For the continuation of the wood chips an inclined-auger is available.
This can be flanged on the open end of the cross-auger. The completely closed inclined-auger is available in lengths of 1,0 m up to 5,0 m. The grid dimension also amounts to 0,1 m.
With the pallets chipper SPE 1300 natural pallets, which usually have to be disposed, can be transformed to valuable fuel.

The machine uses only 18,5 kW of electricity to produce an output of up to 5m³ of wood chips per hour. This 5m³ can replace approx. 350 litres of heating oil, which means a value of approx £180/ hour with an oil price of 50p / litre. Thus the payback on a SPE 1300 machine can be as little as 180 hours! Furthermore you save disposal costs of the pallets.



Click here for Pricelist



Technical Specifications:
Technical Data :
Length: 1940 mm
Width: 1200 mm
Height: 1920 mm
Filling opening: 1320 mm x 220 mm
Weight: 1000 kg
Rotor speed: 60 U/min
Rotor diameter: 300 mm
Number of blades: 36 Pieces
Perforated filter: 30 mm
Driving power: 18.5 kW
Sound pressure level: 82 db (LPA 1 m)

Output:- 5m3/h (or 20-30 pallets)
