Heizohack- S/H HM14-860KTL

The professionals Choice - Highest Capacity Wood Fuel Chipper
Click images to view larger
Current Promotion:
Second Hand
Ref/S/No: 428 Year: 2018
Now Price: £180,000
Type: HM14-860KTL Tandem Chassis Palfinger 10m Crane
Description:

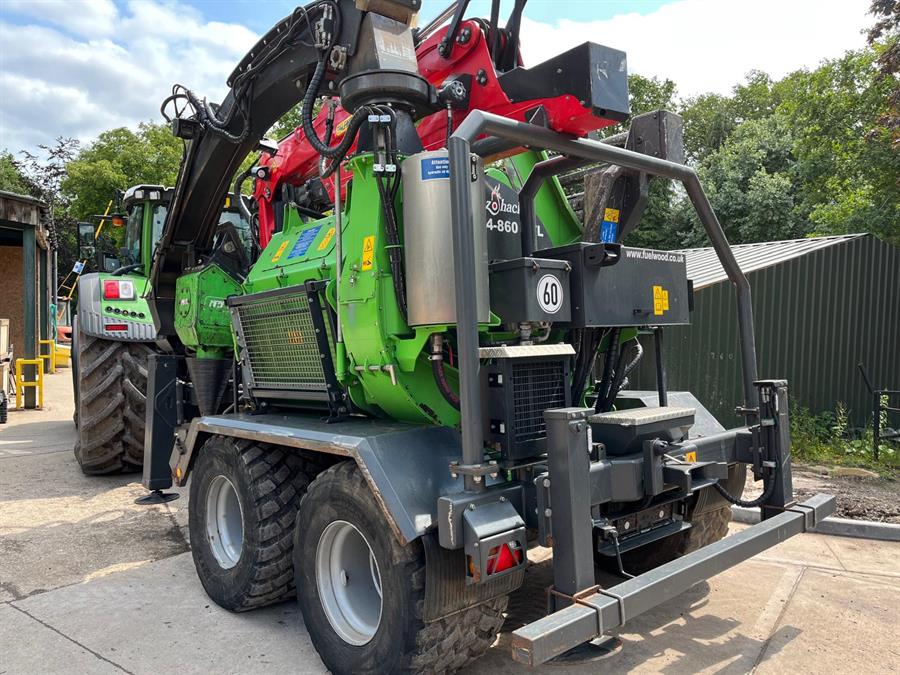

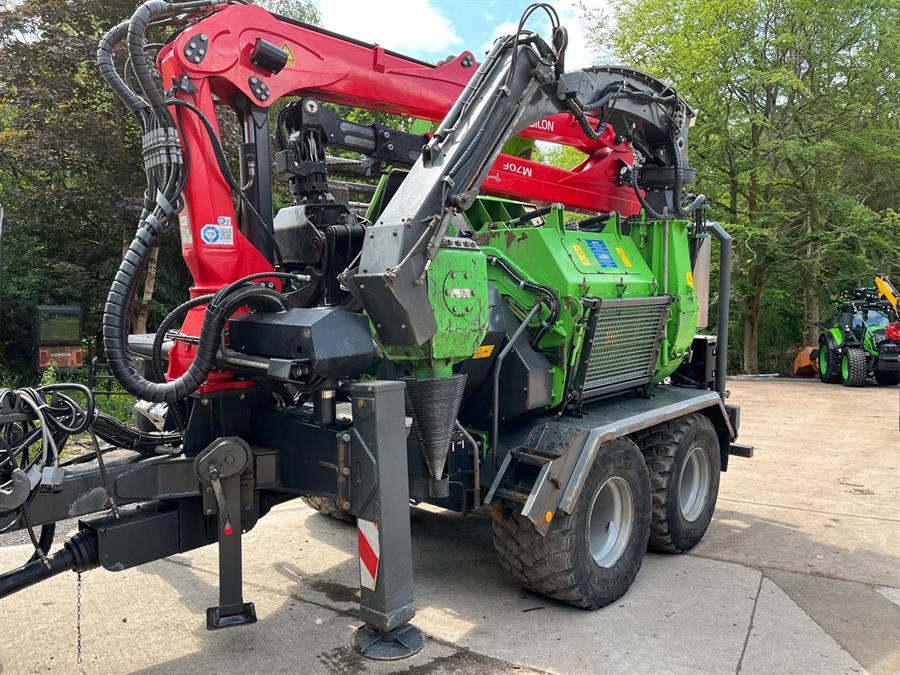

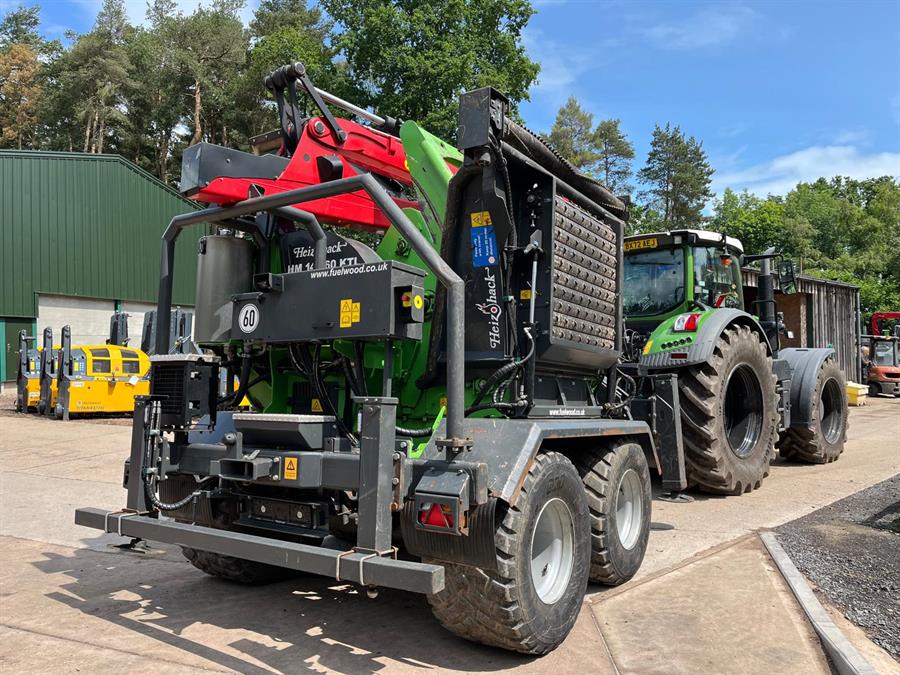

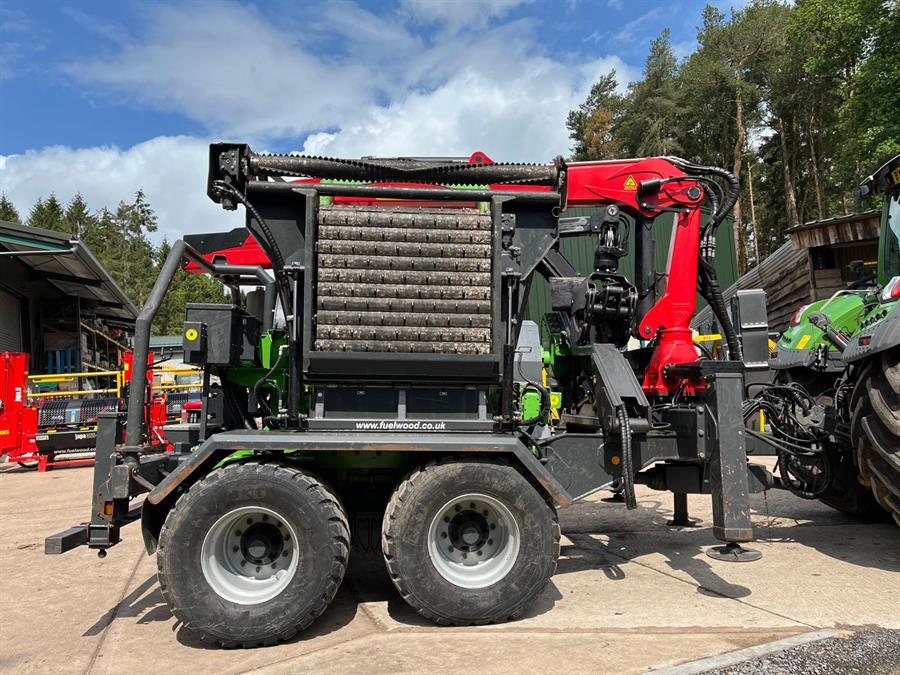

2018 Heizohack HM14-860KTL

Comes with the following:

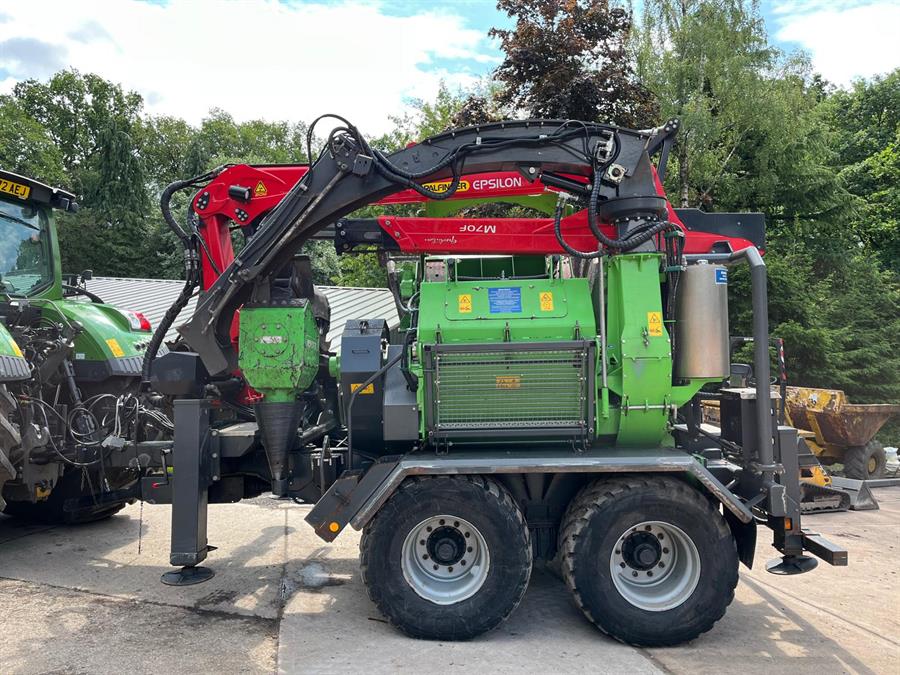

Palfinger Epsilon 107F101crane with Danfoss controls

Rotator Cover Sieve

Infeed Table With Conveyor

Telescopic Discharge

Headlight On Discharge Chute

Camera On Discharge Chute

Reversing Camera

Foot Pedal Controls

875 hours approx

Fully serviced For more information please call 01926 484673 or email sales@fuelwood.co.uk

Technical Specifications:



Height of Feed: 800mm
Max timber diameter :
 650mm
Width of Feed:

1,215

Feed:

Pressure roller with steel teeth (Ø800mm)

Steel conveyor with steel teeth 900mm long

In-feed table 1,500mm long

Feed Flap:

Hydraulically foldable

Front end roller at the in-feed table

Optional steel conveyor.

Sieve:

New 4 piece Sieve 60/70mm with stop bars Lower and upper sieves

Drum: Ø690mm with quick exchangeable blades
Flywheel: 1000kg
Ejector:

Hydraulically foldable, adjustable for height and rotatable (ejecting height approx. 3.35 up to 5.33m, depending on chassis and tyres.

Hydraulic ejector flap adjustment

Controls:

Automatic stress feed control

Two day counters and one overall operating hours counter

Conveyor in-feed speed infinitely adjustable

Feed direction reversible

Remote control with 10m cable and control panel for all functions

Drive: PTO shaft and V-belt transmission
Drive rpm: Max 1000 rev/min
Drive Power: Max permissible 350-500hp
Weight: 7600kg
Chassis:

Chassis 40km/h, a trailing axle, spring loaded pneumatic (air) brakes, PTO shaft, supporting leg, drawbar and trailer coupling ring Ø50mm, mudguards and roadlights, without tyres with ABE

Permissable total weight 9,000kg

Height of Towing Port: 500mm

Chassis Weight 1,000kg

Tyres: 400/55 R22.5 up to 40km/h, off-road tyres, total width approx 2,7m.

Other Chassis and tyre options available



Key Features:
Brochure Download:
